Water is the primary enemy of concrete bridge structures. It carries dissolved chlorides that corrode reinforcement, promotes freeze-thaw damage in cold climates, and dissolves the calcium hydroxide that gives concrete its alkalinity and passivates the reinforcement. Construction joints — the interfaces between successive concrete pours — are the most vulnerable points for water ingress in any concrete bridge. A rubber waterstop embedded in the construction joint provides a continuous, flexible, watertight barrier that prevents water from penetrating the joint for the life of the structure.
The selection of the correct waterstop profile is not a trivial decision. The wrong profile — or a correctly specified profile that is incorrectly installed — can result in joint leakage that is extremely difficult and expensive to repair once the structure is complete. This guide provides a systematic framework for waterstop selection in bridge construction.

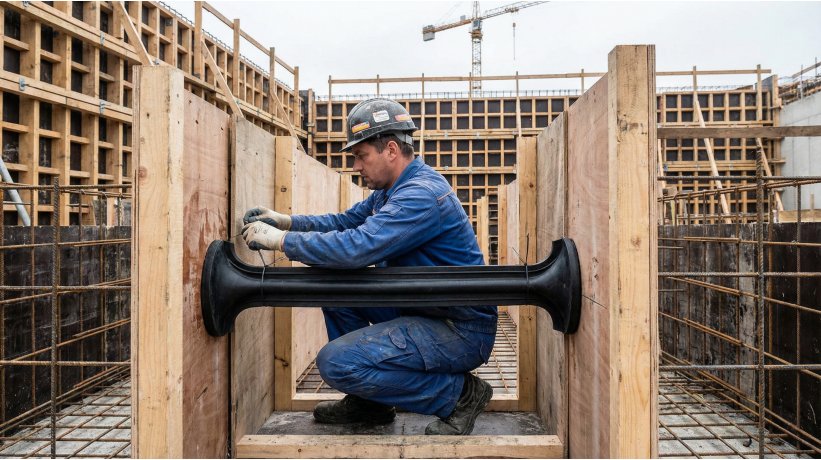

A rubber dumbbell-profile waterstop being positioned in the formwork for a bridge abutment construction joint. The waterstop must be held securely in the centre of the joint and must remain in position during concrete placement and vibration.
The first step in waterstop selection is to identify the type of joint being waterproofed. Bridge construction joints fall into three categories.
Construction joints (no movement): These are the joints between successive concrete pours — for example, between the pile cap and the pier column, or between the pier column and the pier cap. No relative movement is expected across these joints in service. The waterstop must simply prevent water from passing through the joint under the design water pressure.
Expansion joints (movement expected): These joints are designed to accommodate thermal expansion and contraction, creep, and shrinkage movements of the bridge deck. The waterstop must be flexible enough to accommodate the design movement range without tearing or debonding from the concrete.
Seismic joints (large movement): In seismic regions, joints between structural elements must accommodate large displacements in multiple directions during an earthquake. Special high-movement waterstops or flexible joint systems are required.
Once the joint type is established, the appropriate waterstop profile can be selected.
Dumbbell profile (internal): The most widely used waterstop for construction joints. The central web is embedded in the concrete, and the two end bulbs provide mechanical anchorage. The profile is symmetrical, so it can be placed in the centre of the joint without concern for orientation. Suitable for joints with no movement and water pressures up to 5 bar.
Centre-bulb profile (expansion joint): The central bulb provides a reservoir of material that can deform to accommodate joint movement. Suitable for expansion joints with movements up to ±25 mm and water pressures up to 3 bar.
Omega profile (large movement): The omega-shaped central section provides very high movement capacity (up to ±50 mm) by unfolding under tension. Suitable for expansion joints in long-span bridges with large thermal movements.
Flat external profile: Applied to the outside face of the concrete joint, typically used in retrofit situations where an internal waterstop was not installed or has failed. Bonded to the concrete surface using an adhesive primer and structural sealant.

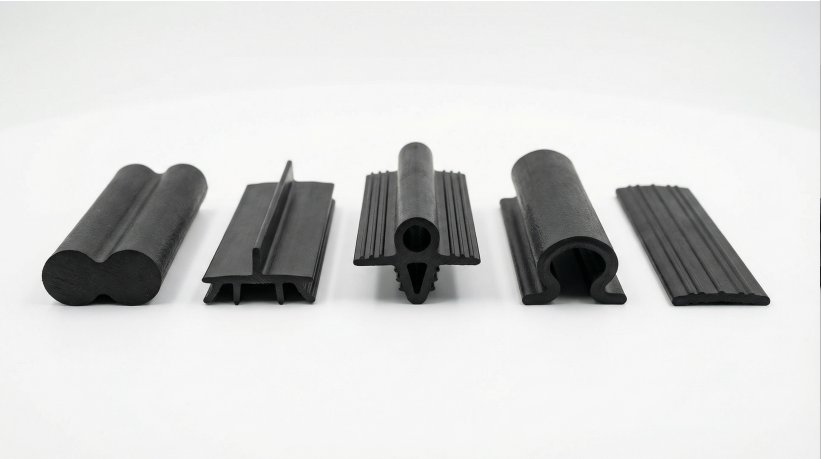

The principal rubber waterstop profiles used in bridge construction: (from left) dumbbell internal, flat external, centre-bulb expansion, omega expansion, and ribbed strip. Profile selection depends on the joint type, the expected movement range, and the water pressure.
| Material | Temperature Range | Chemical Resistance | Typical Application |
|---|---|---|---|
| Natural Rubber (NR) | -40°C to +70°C | Good (non-oil) | General bridge construction |
| SBR (Styrene-Butadiene) | -30°C to +80°C | Good (non-oil) | General bridge construction |
| Neoprene (CR) | -40°C to +100°C | Excellent (oil, ozone) | Industrial bridges, chemical exposure |
| EPDM | -50°C to +120°C | Excellent (UV, ozone) | Extreme temperature environments |
| PVC | -20°C to +60°C | Good | Low-cost applications |
Even the best-specified waterstop will fail if it is incorrectly installed. The most critical installation requirements are as follows. The waterstop must be positioned precisely in the centre of the joint, secured with wire ties to the reinforcement at intervals of no more than 300 mm. The concrete must be carefully placed and vibrated on both sides of the waterstop simultaneously to prevent it from being displaced. Joints in the waterstop strip must be vulcanised (heat-welded), not simply overlapped — a lapped joint will leak. Corners and intersections must be formed using factory-moulded fittings, not site-fabricated mitre cuts.
Bridgent supplies a comprehensive range of rubber waterstops for bridge construction, including dumbbell, centre-bulb, omega, and flat profiles in natural rubber, SBR, neoprene, and EPDM. Standard widths from 150 mm to 450 mm. Factory-moulded corner and intersection fittings are available for all profiles. Contact us for product datasheets and installation guidance.
