March 12, 2026
Elevated highways and viaducts in urban areas are among the most significant sources of environmental noise affecting residential communities. Traffic noise from an elevated structure is particularly problematic because it radiates in all directions — including downward to street level and upward to upper-floor apartments — rather than being attenuated by the natural screening effect of the ground. Highway noise barriers installed on the bridge deck or parapet are the primary engineering measure for mitigating this impact, and their design requires careful consideration of acoustic performance, structural behaviour, and visual integration with the bridge.
Sound is a pressure wave that travels through the air from the source (the vehicle tyres and engine) to the receiver (the nearby resident). A noise barrier reduces the sound level at the receiver by interrupting the direct line of sight between source and receiver, forcing the sound to diffract over the top of the barrier. The effectiveness of a barrier depends primarily on its height (the greater the height, the greater the path length difference between the direct and diffracted paths) and its length (the barrier must extend sufficiently beyond the receiver to prevent flanking). A barrier that provides a 5 dB(A) insertion loss is considered moderately effective; a well-designed barrier can achieve 10–15 dB(A).

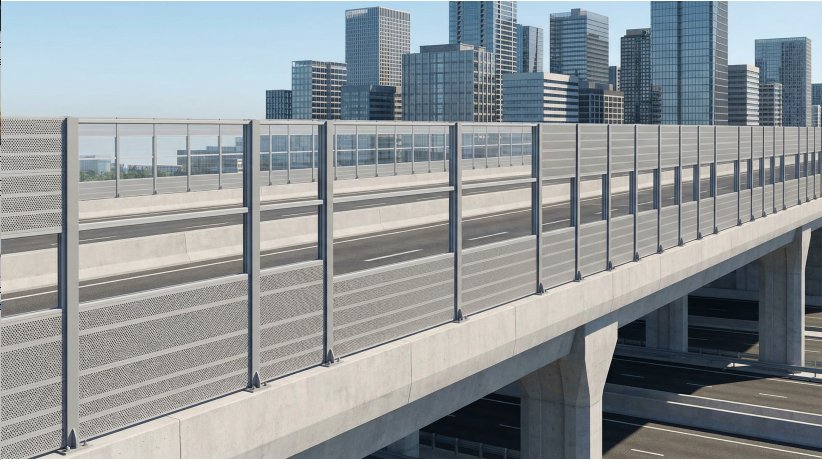

Highway noise barriers installed on both sides of an elevated urban viaduct. The alternating transparent acrylic panels and grey absorptive panels provide effective noise attenuation while maintaining natural light and views for nearby residents.
The most important acoustic design decision is whether to use absorptive or reflective barrier panels — or a combination of the two.
Reflective barriers are solid panels (aluminium sheet, galvanized steel, or concrete) that reflect sound back towards the source. They are effective when there are no sensitive receivers on the source side of the barrier (i.e., no buildings between the highway and the barrier). If there are buildings on the source side, a reflective barrier will increase the noise level at those buildings by reflecting sound back towards them.
Absorptive barriers contain a sound-absorbing material (typically mineral wool or open-cell foam) behind a perforated face sheet. Sound enters through the perforations and is absorbed within the material, converting acoustic energy to heat. Absorptive barriers are preferred in urban environments where there are buildings on both sides of the highway, as they avoid the problem of reflected noise.
In practice, most urban viaduct noise barrier projects use a combination: absorptive panels on the inner (source-facing) side of the barrier and reflective panels on the outer side, to maximise both absorption and reflection performance.
The structural requirements of a noise barrier mounted on a bridge deck are more demanding than those for a ground-mounted barrier, because the barrier must resist wind loads without adding excessive weight to the bridge structure. The principal material options are as follows.
Aluminium framed panels with mineral wool core: The standard solution for bridge noise barriers. The aluminium frame is lightweight, corrosion-resistant, and available in a wide range of powder-coat colours. The mineral wool core provides excellent acoustic absorption. Panel weights are typically 15–25 kg/m².
Galvanized steel framed panels: Higher strength than aluminium, suitable for taller barriers or higher wind load zones. Heavier than aluminium (25–40 kg/m²), which must be considered in the bridge deck loading assessment.
Transparent acrylic or polycarbonate panels: Used where visual transparency is required — for example, to maintain views from upper-floor apartments, or to avoid the visual impact of a solid barrier on a landmark bridge. Acoustic performance is similar to reflective solid panels. Susceptible to scratching and surface degradation over time.

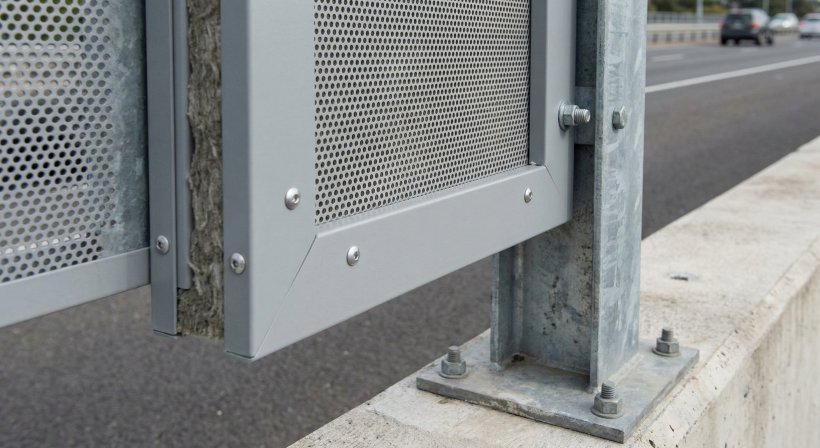

Cross-section detail of an absorptive noise barrier panel. The mineral wool acoustic absorber core is enclosed by a powder-coated aluminium frame and a perforated metal face sheet. The perforations allow sound to enter the absorber, where it is converted to heat.
Noise barriers on bridges are subject to wind loads that are typically higher than those at ground level, due to the elevated position and the absence of surrounding buildings to provide shelter. The structural design must address the following. Wind load: Calculated per EN 1991-1-4 or the applicable national standard, typically 0.5–1.5 kN/m² depending on the location and barrier height. Post design: The barrier posts must be designed to transfer the wind load to the bridge parapet or deck slab without overstressing the concrete. Anchor bolt design and parapet reinforcement are critical. Panel-to-post connection: Must accommodate thermal expansion of the panels and allow individual panels to be replaced without dismantling the entire barrier.
| Panel Type | Sound Reduction Index (Rw) | Absorption Class | Weight (kg/m²) | Typical Height |
|---|---|---|---|---|
| Aluminium absorptive | 28–32 dB | A (αw ≥ 0.8) | 15–25 | 2–6 m |
| Steel reflective | 32–38 dB | Not rated | 25–40 | 2–8 m |
| Acrylic transparent | 26–30 dB | Not rated | 10–18 | 2–4 m |
| Polycarbonate transparent | 24–28 dB | Not rated | 8–15 | 2–4 m |
Bridgent supplies a complete range of highway noise barrier systems for bridge and viaduct applications, including aluminium-framed absorptive panels, galvanized steel reflective panels, and transparent acrylic/polycarbonate panels. All systems are designed to meet EN 1794 structural requirements and EN 1793 acoustic performance standards. We provide acoustic modelling, structural design, supply, and installation services. Contact us to discuss your project requirements.
