The formwork system used to cast a concrete bridge pier is one of the most consequential decisions in the construction planning process. It determines the dimensional accuracy of the finished structure, the quality of the concrete surface finish, the speed of construction, and a significant portion of the overall project cost. For simple rectangular piers, standard proprietary formwork systems are adequate. But the increasing architectural ambition of modern bridge design — with its Y-shaped piers, tapered pylons, curved columns, and complex cross-sections — demands a different approach: custom-fabricated steel formwork designed specifically for the project.
The decision to invest in custom steel formwork is driven by the geometry of the structure. Any pier cross-section that cannot be efficiently formed using standard rectangular or circular proprietary panels — including Y-shapes, T-shapes, trapezoidal sections, and sections with curved or tapered faces — requires custom formwork. The investment is justified when the number of repetitions (the number of identical or similar pours) is sufficient to amortise the fabrication cost over the project. As a general rule, custom steel formwork becomes cost-effective when the same form will be used for more than 5–10 pours.

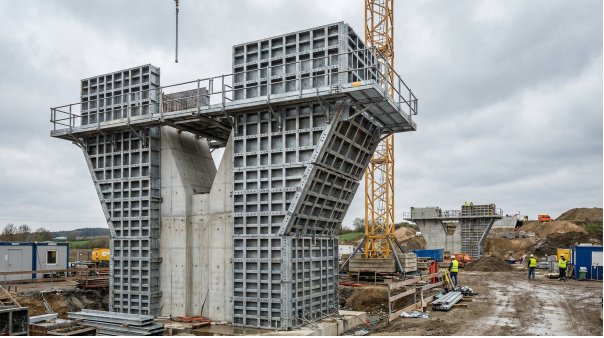

A Y-shaped bridge pier under construction, enclosed by a custom-fabricated steel formwork system. The formwork panels are designed to match the complex geometry of the pier, with integrated working platforms and climbing brackets for efficient vertical progression.
Custom steel formwork design begins with the structural drawings for the pier. The formwork designer creates a 3D model of the formwork system, including all panels, stiffeners, tie rods, working platforms, and climbing brackets. The design must address several key engineering requirements.
Concrete pressure: Fresh concrete exerts hydrostatic pressure on the formwork that increases with pour height. For a typical pour height of 3–4 metres with a concrete density of 2,400 kg/m³ and a pour rate of 1 m/hour, the maximum lateral pressure is approximately 30–40 kN/m². The formwork panels and their stiffening ribs must be designed to resist this pressure with an adequate factor of safety, typically 1.5–2.0.
Tie rod design: Tie rods pass through the concrete section and connect the two faces of the formwork, resisting the tendency of the concrete pressure to push the panels apart. The tie rod spacing, diameter, and material are designed to limit the deflection of the formwork face to within the specified tolerance (typically ±3 mm for a Class F3 surface finish).
Climbing system: For tall piers, a self-climbing formwork system is used. After each pour, the formwork is climbed to the next position using hydraulic cylinders or screw jacks, without the need for a crane. This significantly reduces the crane time required and allows construction to proceed in all weather conditions.

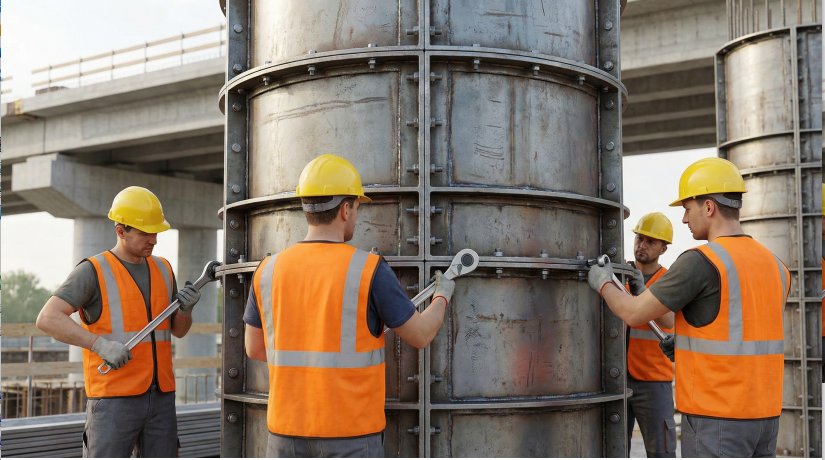

Workers assembling custom steel formwork panels for a circular bridge pier column. The curved panels are connected by high-strength tie rods that resist the hydrostatic pressure of the fresh concrete.
One of the primary advantages of custom steel formwork over timber or plywood systems is the superior concrete surface finish it produces. A well-designed and well-maintained steel form produces a Class F3 or F4 surface finish (per EN 13670) — a smooth, uniform surface with no formwork marks, blow holes, or colour variation. This is particularly important for exposed bridge piers in urban environments where the visual quality of the concrete is a project requirement.
The surface finish of the steel form face is typically achieved by shot blasting and applying a release agent before each pour. The release agent prevents the concrete from bonding to the steel and facilitates stripping without damage to the concrete surface.
| Formwork Type | Reuse Count | Surface Finish | Geometry Flexibility | Typical Application |
|---|---|---|---|---|
| Timber/Plywood | 3–10 | F1–F2 | High | One-off complex shapes |
| Aluminium Proprietary | 50–100 | F2–F3 | Low (standard sizes) | Repetitive rectangular sections |
| Custom Steel | 50–200 | F3–F4 | High (any geometry) | Complex/repetitive piers, pylons |
| GRP (Fibreglass) | 20–50 | F4 | Very high | Architectural/curved surfaces |
Bridgent designs and fabricates custom steel formwork systems for bridge piers, pylons, abutments, and box girder decks. Our formwork engineering team works from the structural drawings to produce a complete formwork design including panel layout, tie rod design, working platform, and climbing system. We also supply standard modular steel formwork panels for rectangular pier construction. Contact us for a quotation on your project.
