March 12, 2026
The world's bridge stock is aging. Hundreds of thousands of bridges built in the post-war construction boom of the 1950s through 1980s are now approaching or exceeding their original design lives. At the same time, traffic volumes and vehicle weights have increased dramatically, placing demands on structures that were never anticipated in the original design. The result is a growing global need for bridge strengthening and structural rehabilitation — the science and engineering practice of restoring, upgrading, and extending the service life of existing bridge structures.
Unlike demolition and replacement, strengthening is typically faster, less disruptive to traffic, and significantly more cost-effective. A well-executed strengthening programme can extend a bridge's service life by 25 to 50 years, delivering exceptional value for bridge owners and infrastructure managers. This guide provides a comprehensive overview of the principal techniques available to structural engineers today.

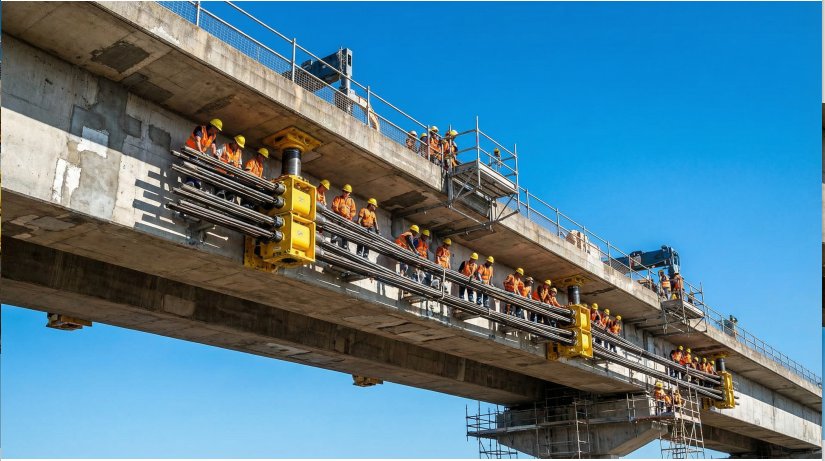

A major highway viaduct undergoing structural strengthening using external post-tensioning tendons. Correct technique selection is critical to achieving the required increase in load-carrying capacity.
No strengthening programme should begin without a thorough structural assessment. This involves a combination of visual inspection, non-destructive testing (NDT), and detailed structural analysis. The goal is to identify the specific deficiencies — whether reduced load capacity, excessive deflection, cracking, corrosion of reinforcement, or vibration — and to quantify the gap between the structure's current capacity and the required performance level. The assessment forms the basis for selecting the most appropriate strengthening strategy.
Common diagnostic tools include half-cell potential mapping (for corrosion assessment), ground-penetrating radar (for void detection and rebar location), core sampling (for concrete strength), and load testing. The findings are then used to build or update the structural model, which drives the strengthening design.
External post-tensioning is one of the most powerful tools available for increasing the load-carrying capacity of existing concrete bridges, particularly box girders and T-beams. High-strength steel tendons are threaded through the interior of the box girder or along the outside of the web, anchored at the ends of the span, and stressed using hydraulic jacks. The resulting compressive force counteracts the tensile stresses caused by traffic loading, effectively increasing the bridge's flexural capacity.
The technique is particularly well-suited to bridges where the original prestressing has been lost through corrosion or where increased axle loads have rendered the original design inadequate. Key system components include the tendons themselves (typically 7-wire strands in HDPE ducts), deviator saddles (which redirect the tendon profile to match the required load-balancing geometry), and anchorage assemblies. Bridgent supplies complete external post-tensioning systems including tendons, deviators, and anchorages.
Carbon Fibre Reinforced Polymer (CFRP) has transformed bridge strengthening practice over the past three decades. CFRP laminates, fabrics, and rods offer tensile strengths of 2,000–3,500 MPa — five to eight times that of structural steel — combined with negligible weight and excellent corrosion resistance. They are bonded to the concrete surface using structural epoxy adhesives, adding flexural and shear capacity without adding significant dead load.
CFRP laminates are the standard solution for flexural strengthening of bridge beams and slabs: bonded to the soffit (tension face), they act as additional external reinforcement. CFRP fabric U-wraps and full wraps are used for shear strengthening of beams and columns, and for confinement of bridge piers to improve ductility and seismic performance. Bridgent's CFRP system includes high-modulus pultruded laminates, unidirectional and bi-directional fabrics, and compatible saturating resins.

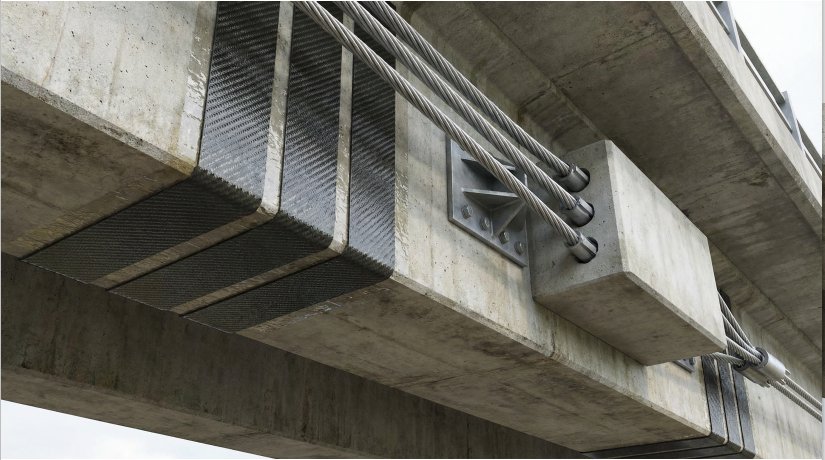

Two complementary strengthening techniques applied to the same bridge girder: CFRP laminates for flexural strengthening (left) and external post-tensioning tendons for increased load capacity (right).
Many older steel-concrete composite bridges were built with insufficient shear connectors, or as non-composite structures where the steel beam and concrete deck act independently. Adding headed shear studs to the steel flange — using a stud welding gun — creates or restores composite action, increasing the effective section modulus and load rating of the bridge without any changes to the primary structure. This is one of the most cost-effective strengthening interventions available for steel bridges.
Modern bridge design trends favour slender, aesthetically refined structures — long-span cable-stayed bridges, footbridges with high span-to-depth ratios, and suspension bridges with lightweight decks. These structures can be susceptible to vibration induced by wind, pedestrian footfall, or traffic. When the natural frequency of the bridge coincides with the frequency of the excitation, resonance can produce accelerations that are uncomfortable for users or, in extreme cases, structurally damaging.
A Tuned Mass Damper (TMD) is a passive vibration control device consisting of a secondary mass connected to the primary structure through springs and dampers. When correctly tuned to the problematic natural frequency, the TMD absorbs and dissipates the vibration energy, dramatically reducing the response of the primary structure. Bridgent's TMD systems are custom-designed for each project based on finite element analysis of the bridge's dynamic characteristics.
| Deficiency | Recommended Technique | Bridgent Product |
|---|---|---|
| Insufficient flexural capacity (concrete) | CFRP laminates or external post-tensioning | CFRP Laminates / PT System |
| Insufficient shear capacity (concrete) | CFRP U-wraps or side-bonded laminates | CFRP Fabric |
| Non-composite or under-connected steel deck | Headed shear studs | Weld Stud System |
| Excessive vibration (footbridge/cable bridge) | Tuned Mass Damper | TMD System |
| Seismic vulnerability (piers/columns) | CFRP confinement wrapping | CFRP Fabric |
| Loss of prestress (post-tensioned bridge) | External post-tensioning | PT System |
The selection of the most appropriate strengthening technique depends on the nature and severity of the structural deficiency, the available access, the traffic management constraints, and the budget. In many cases, a combination of techniques delivers the most efficient and durable solution. Bridgent's engineering team works with bridge owners and consulting engineers from the assessment stage through to design, supply, and installation support.
Bridgent supplies a comprehensive range of bridge strengthening materials — CFRP laminates, CFRP fabric, external post-tensioning systems, shear studs, and Tuned Mass Dampers — for bridge rehabilitation projects worldwide. Our products are manufactured to EN, AASHTO, and project-specific standards, with full technical documentation and engineering support.
