Carbon Fibre Reinforced Polymer (CFRP) has become the material of choice for structural engineers tasked with increasing the load-carrying capacity of existing concrete bridge girders. Its combination of exceptional tensile strength (2,000–3,500 MPa), negligible weight, and long-term durability makes it uniquely suited to bridge strengthening applications where adding dead load is undesirable and access is restricted. This guide provides a practical overview of the design principles and installation procedures for CFRP laminate strengthening of concrete bridge girders.
Before CFRP became widely available, engineers relied on steel plate bonding or reinforced concrete overlays to increase the flexural capacity of bridge beams. Both methods add significant dead load, require complex surface preparation, and are prone to long-term deterioration — steel plates corrode, and the bond between old and new concrete is difficult to guarantee. CFRP laminates overcome all these limitations. A 1.4 mm thick laminate weighing less than 2.5 kg/m² can provide the equivalent tensile force of a 10 mm steel plate, without any corrosion risk and with a service life exceeding 50 years.
Applying a pultruded CFRP laminate to the soffit of a concrete bridge beam using structural epoxy adhesive. Surface preparation and adhesive thickness control are critical to achieving the required bond strength.
The design of CFRP flexural strengthening follows the principles of reinforced concrete beam theory, with the CFRP laminate acting as additional external tension reinforcement. The design process involves three key steps.
Step 1 — Determine the required strengthening level. From the structural assessment, the engineer establishes the current moment capacity of the section (M_Rd) and the required capacity (M_Ed). The difference defines the required contribution from the CFRP.
Step 2 — Calculate the required CFRP area. Using the design tensile strength of the CFRP (accounting for partial safety factors and the strain compatibility between the CFRP and the existing reinforcement), the required cross-sectional area of CFRP is calculated. This translates directly to the number and width of laminates required.
Step 3 — Check bond and anchorage. The critical failure mode for externally bonded CFRP is debonding — either at the CFRP-adhesive interface or within the concrete substrate. The design must verify that the bond length is sufficient and that the maximum strain in the CFRP does not exceed the debonding strain limit. End anchorage using CFRP U-straps or mechanical anchors is often required at the laminate termination points.
Where a bridge beam is deficient in shear capacity — a common finding in older bridges designed to earlier codes — CFRP fabric can be applied as U-wraps (wrapping around the bottom and sides of the beam) or, where access permits, as full wraps. The fibres are oriented at 45° or 90° to the beam axis to intercept the diagonal tension cracks that govern shear failure. The design follows the same truss model used for conventional shear reinforcement, with the CFRP contribution added to that of the existing stirrups.

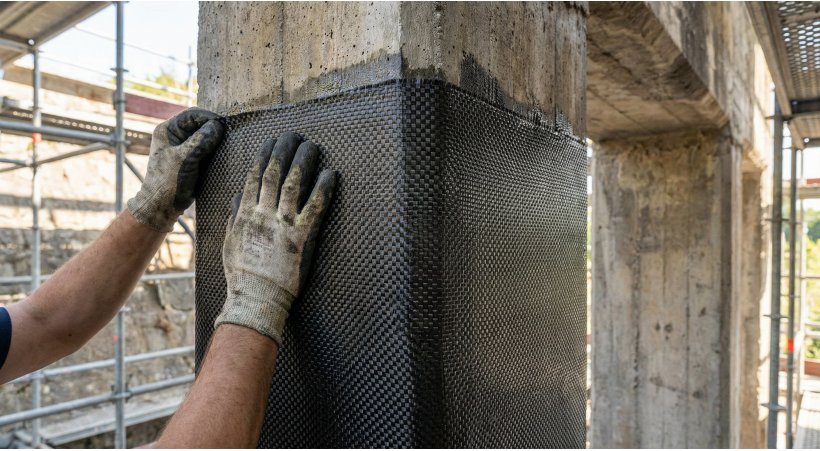

CFRP fabric U-wrap applied to a concrete bridge pier for shear strengthening and ductility enhancement. The multi-directional carbon fibre fabric provides confinement to the concrete core.
The long-term performance of any CFRP strengthening system depends critically on the quality of the bond between the laminate and the concrete substrate. Surface preparation is therefore the most important step in the installation process. The concrete surface must be sound, clean, and free of all laitance, contamination, and loose material. The standard preparation method is abrasive blasting (shot blasting or grit blasting) to achieve a surface profile of CSP 3–5 (ICRI guideline). Any areas of delaminated or carbonated concrete must be repaired with a compatible repair mortar before the CFRP is applied. The minimum acceptable concrete tensile strength for CFRP bonding is typically 1.5 MPa (pull-off test).
Once the surface is prepared, the installation sequence is as follows. The structural epoxy adhesive is mixed in the correct ratio (typically 2:1 by weight) and applied to both the concrete surface and the back of the CFRP laminate using a notched trowel to achieve a uniform adhesive thickness of 1–2 mm. The laminate is then pressed firmly onto the concrete, and a rubber roller is used to eliminate air voids and ensure full contact. Excess adhesive is removed from the edges. The adhesive is allowed to cure at the ambient temperature for the time specified by the manufacturer (typically 24–72 hours at 20°C) before the structure is returned to service.
| CFRP Product | Tensile Strength | Elastic Modulus | Thickness | Application |
|---|---|---|---|---|
| Standard Laminate | 2,800 MPa | 165 GPa | 1.2–1.4 mm | Flexural strengthening |
| High-Modulus Laminate | 1,400 MPa | 300 GPa | 1.2–1.4 mm | Stiffness-critical applications |
| Unidirectional Fabric | 3,500 MPa | 230 GPa | 0.13–0.33 mm/ply | Shear strengthening, confinement |
| Bi-directional Fabric | 3,000 MPa (0°/90°) | 230 GPa | 0.2–0.4 mm/ply | Confinement, seismic retrofit |
Bridgent supplies a complete CFRP strengthening system for concrete bridge girders, including pultruded laminates, unidirectional and bi-directional fabrics, structural epoxy adhesives, and saturating resins. All products are manufactured to EN 1504 and ISO 9001 standards. Technical datasheets, design software, and on-site installation support are available.
