Every bridge project, from a simple rural crossing to a landmark cable-stayed structure spanning a major river, depends on a complex ecosystem of equipment and specialty materials. Beyond the primary structural elements — the concrete, the reinforcing steel, the prestressing tendons — there is a critical layer of specialty products that determine the quality, durability, and safety of the finished structure. These products are often invisible in the completed bridge, but their performance is fundamental to the bridge's long-term integrity.
This guide provides an overview of the principal categories of bridge construction equipment and specialty materials, explaining their function, selection criteria, and the consequences of getting them wrong

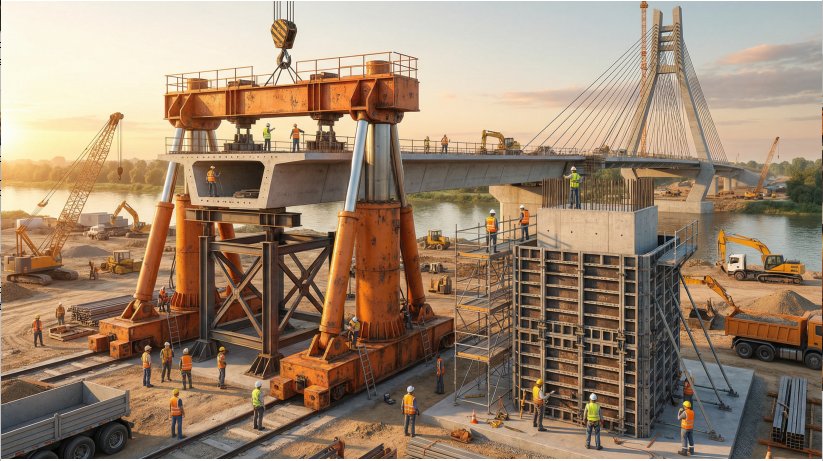

A modern bridge construction site brings together a complex ecosystem of heavy equipment and specialty materials. Hydraulic jacks, custom steel formwork, and precision-engineered specialty products all play critical roles in delivering a safe, durable, and cost-effective structure.
Hydraulic jacks are indispensable tools in bridge construction and maintenance. In new construction, they are used for stressing post-tensioning tendons, launching bridge segments, and positioning precast elements. In maintenance and rehabilitation, they are used for bearing replacement — lifting the bridge superstructure to allow worn or damaged bearings to be removed and replaced with new ones.
Modern bridge jacking operations use synchronous hydraulic jacking systems, in which multiple jacks are controlled by a central PLC (Programmable Logic Controller) that monitors the load and displacement at each jack in real time and adjusts the hydraulic pressure to maintain a level lift within ±1 mm. This precision is essential for preventing the build-up of secondary stresses in statically indeterminate structures. Bridgent's double-acting, lock-nut hydraulic jacks are designed specifically for bridge lifting operations, with capacities from 50 tonnes to 1,000 tonnes per jack.
The quality of a concrete bridge structure is only as good as the formwork that shapes it. For standard rectangular piers and abutments, proprietary modular formwork systems are adequate. But modern bridge design increasingly features complex geometries — Y-shaped piers, curved box girders, tapered pylons — that require custom-fabricated steel formwork designed specifically for the project.
Custom steel formwork offers several advantages over timber or aluminium systems: higher stiffness (critical for maintaining dimensional accuracy under concrete pressure), longer service life (a well-maintained steel form can be reused 50–100 times), and the ability to incorporate integrated working platforms, climbing systems, and vibration access ports. The investment in custom formwork is typically recovered within the first two or three uses.
Concrete is inherently permeable, and construction joints — the interfaces between successive concrete pours — are the most vulnerable points for water ingress. In bridges, water penetration through construction joints leads to corrosion of reinforcement, freeze-thaw damage, and ultimately structural deterioration. Rubber waterstops are embedded in construction joints to provide a continuous, watertight barrier.
The selection of the correct waterstop profile is critical. Internal (dumbbell) waterstops are used in construction joints where no movement is expected. Centre-bulb waterstops are used in expansion joints where longitudinal movement must be accommodated. The waterstop material — natural rubber, SBR, neoprene, or PVC — is selected based on the chemical environment and the required service temperature range.

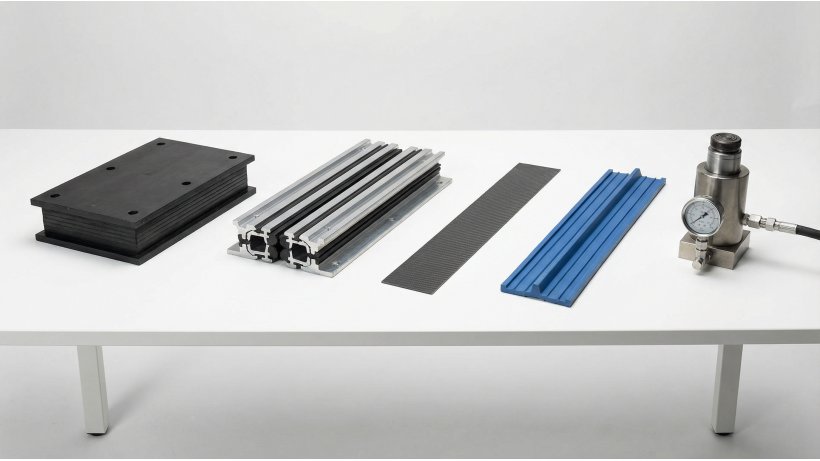

A selection of the specialty materials and components that Bridgent supplies for bridge construction and maintenance projects worldwide.
Elevated highways and viaducts in urban areas generate significant noise that affects the quality of life of nearby residents. Highway noise barriers installed on the bridge deck or parapet are the primary mitigation measure. The design of a noise barrier for a bridge application must balance acoustic performance (achieving the required noise reduction), structural performance (resisting wind loads without adding excessive weight to the bridge deck), and aesthetics (integrating with the bridge's visual character).
Bridgent supplies a range of noise barrier systems for bridge applications, including absorptive panels (mineral wool core with perforated metal face), reflective panels (solid aluminium or galvanized steel), and transparent panels (acrylic or polycarbonate). All systems are designed to meet the structural requirements of EN 1794 and the acoustic requirements of the project specification.
| Product Category | Primary Function | Key Selection Criteria |
|---|---|---|
| Hydraulic Jacking System | Lifting, bearing replacement, PT stressing | Capacity, stroke, synchronisation accuracy |
| Custom Steel Formwork | Shaping concrete piers, abutments, decks | Geometry complexity, reuse count, surface finish |
| Rubber Waterstop | Waterproofing construction/expansion joints | Joint type, movement range, chemical resistance |
| Highway Noise Barrier | Traffic noise attenuation | Required noise reduction (dB), wind load, aesthetics |
| Structure Bearing | Load transfer and movement accommodation | Vertical load, movement range, seismic requirement |
| Bridge Expansion Joint | Accommodating deck movement | Movement range, traffic speed, waterproofing |
Bridgent is a one-stop supplier of bridge construction equipment and specialty materials, including hydraulic jacking systems, custom steel formwork, rubber waterstops, highway noise barriers, structure bearings, and bridge expansion joints. Our products are used on bridge projects in over 30 countries. Contact our engineering team for technical advice and competitive pricing.
Bridgent is your specialist partner for bridge construction and maintenance materials. From CFRP and post-tensioning systems to hydraulic jacks and noise barriers, we supply the complete range with full engineering support.
