Every bridge moves. The thermal expansion and contraction of the deck, the creep and shrinkage of concrete, the deflection under traffic loading, and the settlement of foundations all generate movements that must be accommodated somewhere in the structure. Bridge expansion joints are the engineered components that manage these movements at the deck level, providing a continuous running surface for traffic while allowing the structure to move freely. When they work well, they are taken for granted. When they fail, the consequences — water ingress, concrete deterioration, bearing damage, and costly emergency repairs — can be severe and far-reaching.
This guide provides a comprehensive overview of bridge expansion joint technology, covering all major joint types, the principles governing their selection, installation best practices, and the inspection and maintenance strategies that maximise their service life.
Why Bridge Expansion Joints Are Necessary
A concrete bridge deck 100 metres long will expand and contract by approximately 50 mm over a typical annual temperature range of 40°C. Over a 500-metre bridge, this becomes 250 mm of movement. Without expansion joints, this movement would generate enormous thermal stresses in the structure, leading to cracking, spalling, and ultimately structural failure.
Expansion joints provide a controlled discontinuity in the bridge deck that allows these movements to occur freely. They must simultaneously: accommodate the full range of structural movement (thermal, creep, shrinkage, live load deflection); carry the full traffic loading across the joint gap; maintain a watertight seal (in most joint types) to prevent water ingress; and provide a smooth, safe running surface for vehicles.

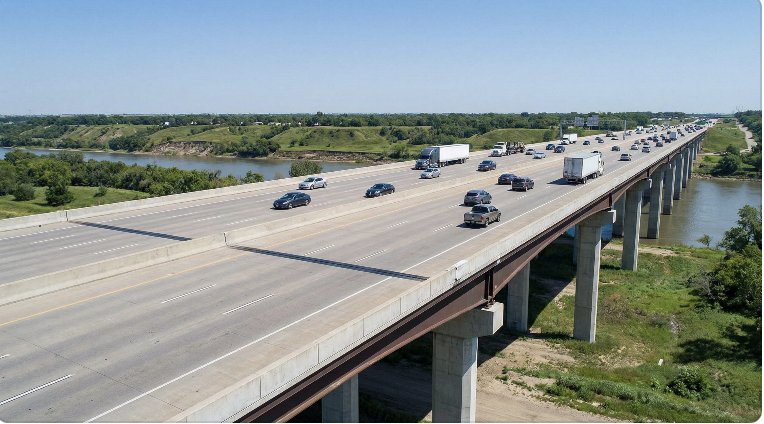

Multiple expansion joints visible in the deck of a major highway bridge. On long-span bridges, expansion joints are required at regular intervals to accommodate the cumulative thermal movements of the bridge deck. Their correct selection, installation, and maintenance is critical to the long-term performance of the bridge.
The Five Major Types of Bridge Expansion Joints
1. Buried (Asphaltic Plug) Joints — The simplest joint type, consisting of a flexible bituminous material cast into a recess in the bridge deck. Suitable only for very small movements (up to 20 mm) and low-traffic roads. Low initial cost but short service life and high maintenance frequency.
2. Rubber Compression Seal Joints — A preformed rubber seal compressed between steel edge beams. Suitable for movements up to 40 mm. Simple and low-cost, but the seal is vulnerable to damage from debris and de-icing chemicals. Common on older bridges.
3. Strip Seal Joints — A profiled elastomeric strip seal retained in slots in steel edge beams. Suitable for movements up to 80 mm. Provides good waterproofing and a smooth running surface. The seal is replaceable without removing the edge beams. The most widely used joint type for medium-span bridges.
4. Modular Expansion Joints — A system of steel centre beams and elastomeric sealing elements, supported on a spring-controlled support bar system. Suitable for movements from 80 mm to 1,200 mm. Provides watertight performance across large movement ranges. The standard choice for long-span bridges and major highway structures.
5. Finger Expansion Joints — Interlocking steel finger plates that slide over each other as the bridge moves. Suitable for movements from 80 mm to 1,200 mm. Highly durable (no elastomeric components) but not watertight — requires a drainage trough beneath. Preferred for harsh environments where elastomeric seal life would be short.
Bridge Expansion Joint Selection: Key Parameters
| Parameter | Buried | Comp. Seal | Strip Seal | Modular | Finger |
|---|---|---|---|---|---|
| Movement Range | 0–20 mm | 0–40 mm | 0–80 mm | 80–1200 mm | 80–1200 mm |
| Waterproofing | Good | Good | Good | Good | Poor (drainage req.) |
| Traffic Loading | Low | Medium | High | High | High |
| Service Life | 5–10 yr | 10–20 yr | 20–30 yr | 25–40 yr | 40–50 yr |
| Maintenance | High | Medium | Low–Medium | Medium | Low |
| Relative Cost | Low | Low | Medium | High | Medium–High |
The five major bridge expansion joint types supplied by Bridgent. From left to right: buried asphaltic plug joint (small movements), rubber compression seal (small-medium movements), strip seal joint (medium movements), modular expansion joint (large movements, watertight), and finger expansion joint (large movements, high durability).
Installation: The Critical Factors for Long-Term Performance
The most common cause of premature expansion joint failure is poor installation — specifically, inadequate concrete nosing quality, incorrect edge beam setting, or premature trafficking before the nosing concrete has achieved full strength. Key installation principles are: use high-strength, low-permeability concrete (minimum C40/50) for the nosing; set edge beams to the correct level (flush with deck surface, ±1 mm) and the correct gap width for the installation temperature; do not traffic the joint until the nosing concrete has achieved its full design strength; and install elastomeric seals using the correct tools and procedures to avoid over-stretching.
Inspection and Maintenance of Bridge Expansion Joints
Expansion joints should be inspected at least annually, with a detailed inspection every 5 years. Key inspection items include: seal condition (cracking, tearing, displacement), edge beam condition (corrosion, impact damage), nosing concrete condition (cracking, spalling), and evidence of water ingress below the joint. Seals should be replaced at the first sign of significant deterioration — deferring seal replacement invariably leads to more extensive and costly repairs to the nosing and substructure.
For modular joints, the support bar system should be inspected for corrosion and correct function (equal spacing of centre beams throughout the movement range). For finger joints, the drainage trough should be cleaned at least annually to prevent blockage and ensure contaminated water is properly discharged.
Bridgent supplies the full range of bridge expansion joints — from strip seal joints for small movements to modular and finger joints for large movements — manufactured to international standards and available with full technical support from specification through to installation and maintenance. Our products are used on bridge projects in over 30 countries worldwide.
