The Millennium Bridge in London, opened in June 2000, became famous almost immediately — not for its elegant design, but for the alarming lateral swaying that forced its closure just two days after opening. The cause was a phenomenon known as synchronous lateral excitation: as pedestrians walked across the bridge, their natural tendency to adjust their gait to match the bridge's lateral sway created a positive feedback loop that amplified the vibrations to unacceptable levels. The solution, implemented after 18 months of closure, was the installation of 37 fluid-viscous dampers and 52 Tuned Mass Dampers (TMDs). This case study remains the most famous illustration of the power of TMD technology in bridge engineering.
While the Millennium Bridge is exceptional, the underlying challenge is not. Modern pedestrian bridges, with their slender profiles and long spans, are inherently susceptible to vibration. This article describes how a TMD system was designed, installed, and commissioned to resolve a vibration problem on a contemporary footbridge, and explains the engineering principles behind the solution.

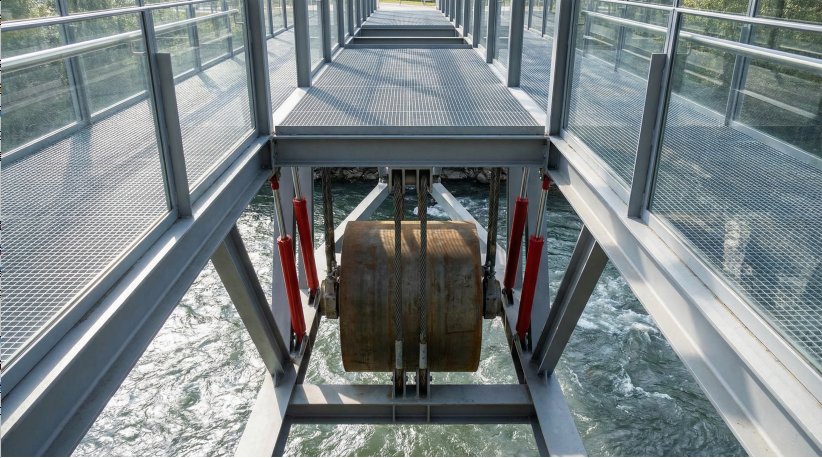

A Tuned Mass Damper (TMD) installed beneath the deck of a slender steel pedestrian bridge. The heavy steel mass, suspended by cables and surrounded by red hydraulic dampers, absorbs and dissipates vibration energy to keep accelerations within acceptable limits.
The bridge in question is a 120-metre span steel box girder footbridge connecting a university campus to a public park. Shortly after opening, users reported uncomfortable bouncing sensations when groups of people walked across the bridge, particularly when they walked in step. Accelerometer measurements confirmed that the peak vertical accelerations exceeded 1.0 m/s² — well above the 0.5 m/s² limit recommended by EN 1990 Annex A2 for pedestrian comfort.
Finite element analysis identified the cause: the bridge's first vertical bending mode had a natural frequency of 2.1 Hz, which falls squarely within the range of normal walking frequencies (1.6–2.4 Hz). When a group of pedestrians walks at a pace that matches this frequency, the resulting resonant excitation produces large accelerations even though the individual forcing amplitude is small.
A Tuned Mass Damper (TMD) is a passive vibration control device consisting of a secondary mass (m) connected to the primary structure through a spring (stiffness k) and a damper (damping coefficient c). The fundamental principle is that when the TMD is tuned to the natural frequency of the problematic vibration mode, it acts as a vibration absorber: as the primary structure vibrates, the TMD mass moves out of phase, applying a force that opposes and reduces the primary structure's motion.
The optimal tuning frequency and damping ratio for the TMD are determined by the Den Hartog equations (for an undamped primary structure) or their equivalents for damped systems. For this bridge, the design parameters were: TMD mass = 2,500 kg (approximately 1.5% of the modal mass), tuning frequency = 2.05 Hz (slightly below the bridge frequency to account for mass loading effects), and damping ratio = 8%.
The TMD was installed inside the steel box girder, suspended from the top flange by four high-strength steel rods. The mass consists of a steel block, and the spring stiffness is provided by coil springs selected to achieve the target natural frequency. The damping is provided by two fluid-viscous dampers connected between the mass and the girder web.
Engineers fine-tuning the spring stiffness and damping coefficient of a TMD unit installed inside a bridge box girder. The tuning process involves adjusting the suspension system until the TMD's natural frequency precisely matches the target vibration mode of the bridge.
Commissioning involved a series of heel-drop tests and walking excitation tests with accelerometers mounted on both the bridge deck and the TMD mass. The spring stiffness was adjusted by adding or removing spring elements until the TMD frequency matched the target value. The damping coefficient was verified by measuring the free decay of the TMD mass after an impulse excitation.
Post-installation testing demonstrated a dramatic reduction in bridge vibration. Under the same pedestrian loading conditions that previously produced accelerations of 1.0 m/s², the peak accelerations were reduced to 0.18 m/s² — an 82% reduction. The bridge comfortably meets the EN 1990 comfort criterion, and user surveys confirmed that the uncomfortable bouncing sensation had been completely eliminated.
| Parameter | Before TMD | After TMD | Reduction |
|---|---|---|---|
| Peak vertical acceleration | 1.02 m/s² | 0.18 m/s² | 82% |
| Structural damping ratio | 0.5% | 4.2% (effective) | +3.7% |
| User comfort rating | Unacceptable | Comfortable | — |
