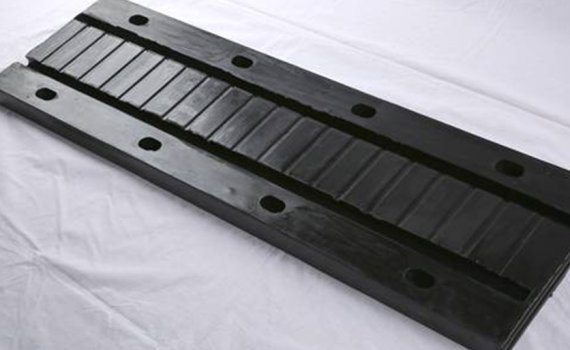

Elastomeric bridge expansion joints, commonly known as rubber Bridge Expansion Joint or mat expansion joints, provide a durable and cost-effective sealing solution for bridges with low to moderate movement ranges. Their design leverages the inherent properties of elastomers to ensure smooth traffic flow and long-term performance.
Product Classification: Pre-fabricated, reinforced elastomeric bearing-seal assembly for continuous bridge deck surfaces.

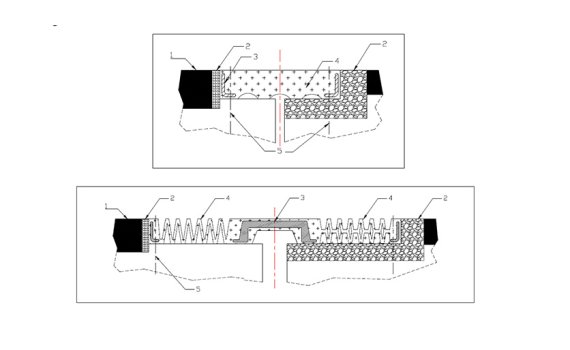

Core Operating Principle: Accommodates structural movements (thermal expansion/contraction, creep, shrinkage) through controlled, multi-axial deformation of the elastomeric matrix. The joint functions via:
Compression & Elongation: To absorb translational movement along the bridge axis.
Shear Deformation: Within the internal webbing or across the entire element to accommodate multi-directional shifts without mechanical failure.
Moment Resistance: The reinforced structure provides rotational stability at the deck end.
Material: rubber, steel plate and angle iron.
Table 1: Specification of Elastomeric expansion joint | ||||
Model | Movement | Module length | Module depth | Weight |
30 | ± 15 | 2000 | 33 | 18 |
50 | ± 25 | 2000 | 43 | 25 |
80 | ± 40 | 2000 | 46 | 34 |
100 | ± 50 | 2000 | 54 | 45 |
160 | ± 80 | 2000 | 84 | 88 |
200 | ± 100 | 2000 | 71 | 135 |
330 | ± 165 | 1000 | 100 | 280 |
Accessories:

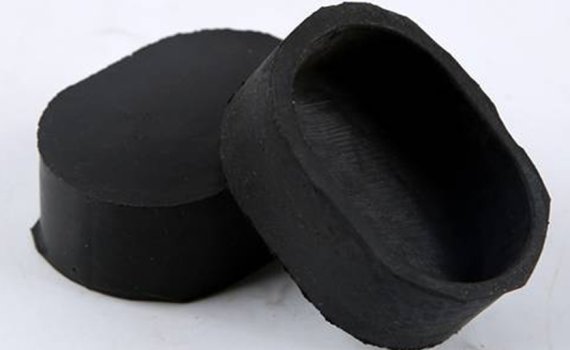

· Kidney-shaped cap.

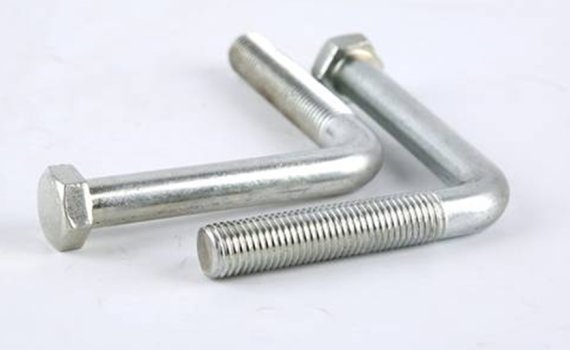

· Curved screw bolt.

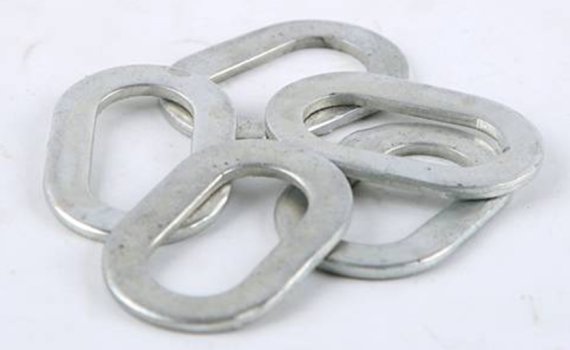

· Ring.

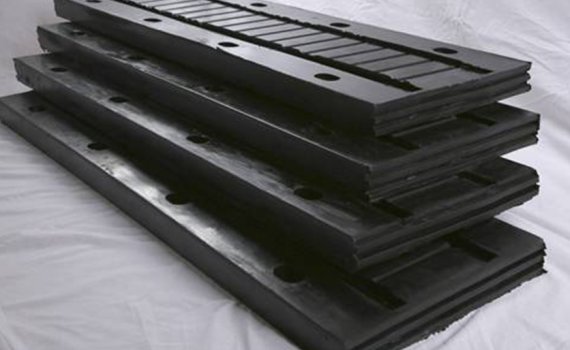

Elastomeric Element:
Base Compound: Prime-grade Neoprene (CR) or Ethylene Propylene Diene Monomer (EPDM).
Key Properties:
Hardness (Durometer): 60-70 Shore A, optimized for load-bearing and flexibility.
Tensile Strength: ≥ 15 MPa.
Elongation at Break: ≥ 350%.
Weathering Resistance: Formulated with anti-ozonants and carbon black for superior UV and ozone resistance (Tested per ASTM D1149).

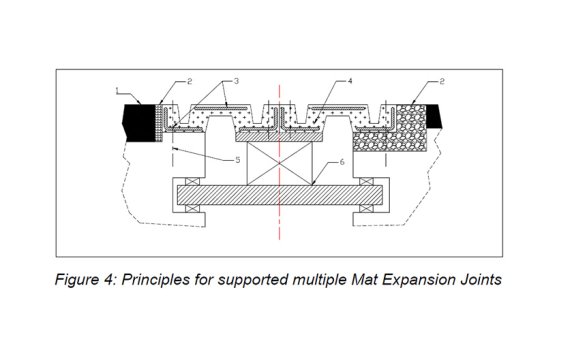

Reinforcement System:
Internal Reinforcement: Multiple layers of steel or high-tensile fabric laminates, fully vulcanized-bonded to the elastomer.
Function: Provides structural capacity to distribute wheel loads and prevent buckling under compression, while allowing for controlled shear deformation.

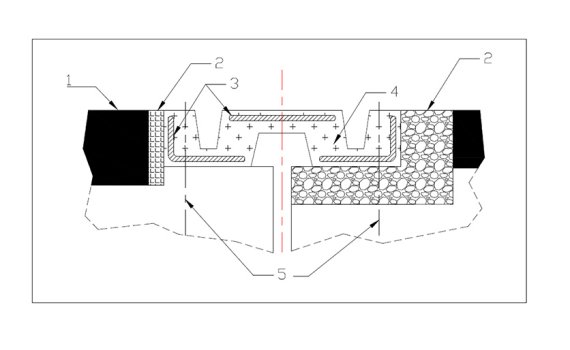

Anchorage System:
Components: Pre-drilled hot-dip galvanized steel (≥ 80µm) angle irons or L-shaped profiles.
Installation Interface: Anchor bolts are set in a high-strength, non-shrink epoxy grout (e.g., ASTM C881 Grade 3) to ensure precise alignment and load transfer to the concrete substrate.
Movement Capacity: Certified for total movement ranges from 0 mm to 60 mm.
Load Rating: Engineered to support AASHTO HL-93 and Eurocode LM1 traffic loading without significant deflection.
Waterproofing Integrity: The monolithic elastomeric body, combined with epoxy-sealed bolt holes and junctions, creates a continuous, high-pressure watertight seal, preventing ingress and protecting substructures.
Durability & Maintenance:
Abrasion Resistance: High resistance to tire wear, validated by ASTM D5963 testing.
Corrosion Protection: All internal steel is hot-dip galvanized per ASTM A123.
Maintenance: Requires no periodic lubrication or mechanical adjustment, resulting in near-zero lifecycle maintenance.

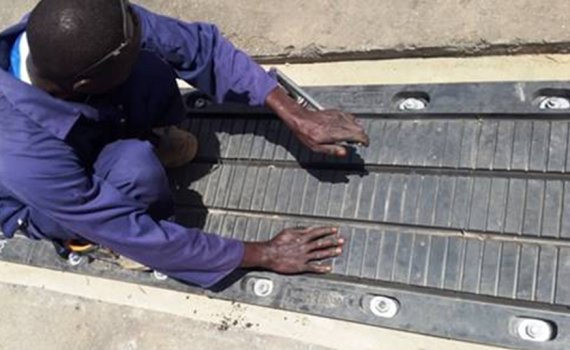

Substrate Preparation: Requires a clean, sound concrete edge with a compressive strength of ≥ 30 MPa at time of installation.

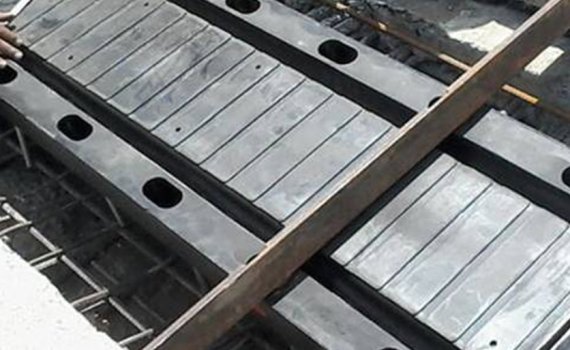

Critical Installation Step: All anchor bolt cavities and interfacial gaps must be fully potted with a flowable, structural epoxy adhesion agent to achieve the specified waterproof performance and composite action with the deck.

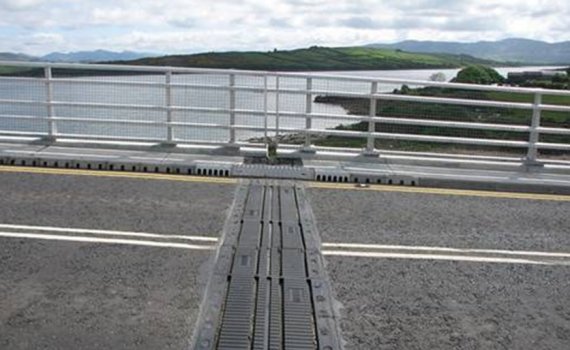

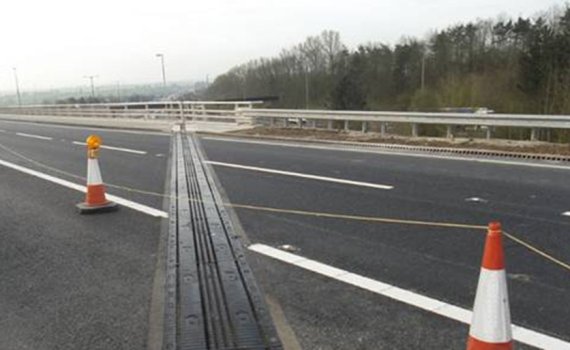

Vertical Applications: Bridge ends (between deck and abutment), approach slabs.
Structural Types: Ideal for standard grade-separation flyovers, urban viaducts, and concrete frame structures where movement demands are moderate and noise damping is a priority.
Project Phase: Suitable for both new construction and rehabilitation projects as a direct replacement for failed asphalt plugs or simpler joint systems.
