The cables for suspension bridges are primarily used in various cable structure systems, including cable nets, cable trusses, cable domes, and hybrid systems such as cable-stayed structures, string structures, cable-arch structures, and suspendomes that combine flexible cables with rigid components. They are also essential for glass curtain wall systems. These structural cables are valued for their aesthetic appeal, innovative anchorage design, and high anchoring efficiency. They contribute to creating lighter, more beautiful, and cost-effective building structures, making them particularly suitable for public venues like airports and stadiums that prioritize visual appeal.
Our structural cable products are designed, manufactured, and certified in strict compliance with a comprehensive framework of authoritative international and Chinese standards. The design process adheres to GB 50739-2011 for composite stainless steel cables and the cable structure design specifications of EN 1993-1-11 (Eurocode 3). Manufacturing and material quality are governed by core standards including GB/T 17101-2019 for bridge cables and ISO 19203 for alloy coatings, supplemented by JG/T 330-2011 for stainless steel cables in curtain walls and JG/T 200-2017 for socket terminations. Furthermore, our quality management system is ISO 9001 certified, and we provide authoritative third-party test reports for anchorage efficiency (≥0.95) and fatigue performance, guaranteeing global reliability and compliance.

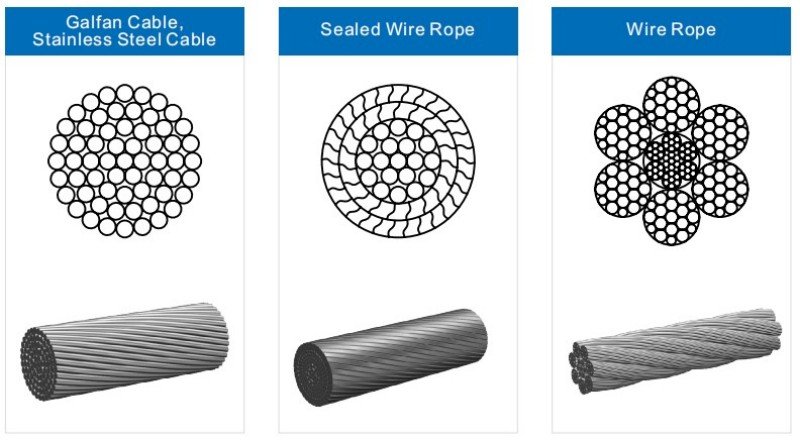

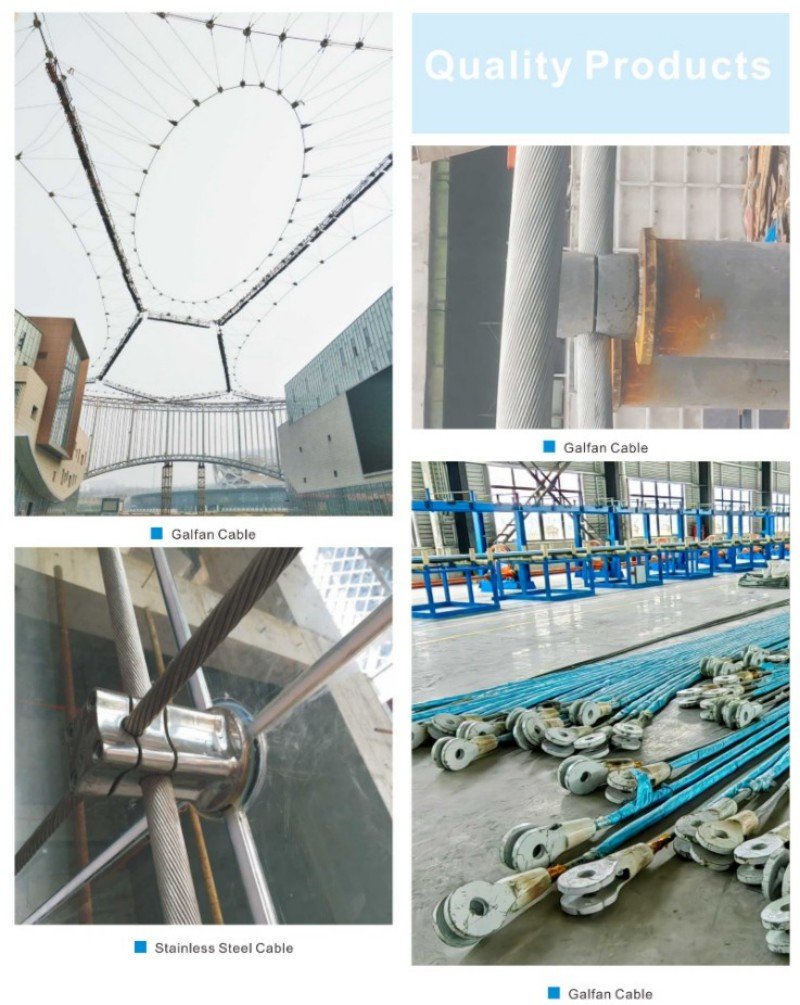

Galfan Cable: A cable manufactured in full compliance with Chinese Standard YB/T 4543-2016 for Zinc-5% Aluminum Mixed Rare Earth Alloy-Coated Cable in Building Engineering. Its verified static load tensile capacity shall meet or exceed the specified theoretical minimum breaking force of the cable.
Stainless Steel Cable: A cable manufactured in full compliance with Chinese Standard YB/T 4294-2012 for Stainless Steel Cable. The verified static load tensile capacity shall meet or exceed the specified theoretical minimum breaking force for hot-cast sockets, and shall be not less than 90% of this value for compression-type fittings.
Steel Wire Rope Cables (Including Sealed, Significant-Purpose, General-Purpose, Large-Diameter, and Compacted Strand Types): Steel wire ropes and their terminations shall conform to Chinese Standard GB/T 30588-2014 for Molten Metal Socketing. The verified static load tensile capacity of the assembled cable shall meet or exceed the specified theoretical minimum breaking force of the rope.
Performance Parameters of Galfan Cables (zinc-5% aluminum-mixed rare earth alloy-coated cables for
building engineering)
1. The conte nt of aluminum in the steel wire coating (zinc-5% aluminum-mixed rare earth alloy coating) used forprocessing Galfan cable isgreater than 4.2%;
2. The elasticity modulus of Galfan cables is not less than 1.5X1 05Mpa
1. The steel wire for steel strand is made ofaustenitic stainless steel as specifiedinGB/T4240.The grades include 06Cr18Ni9,12Cr18Ni9,06Cr19Ni9N,06Cr1 7Ni12Mo2:
2.The out-of-roundness of the steelstrand is notgreater than 4% ofits nominal diameter;
3.The elongation of the steelstrand is not greaterthan 1.5%.

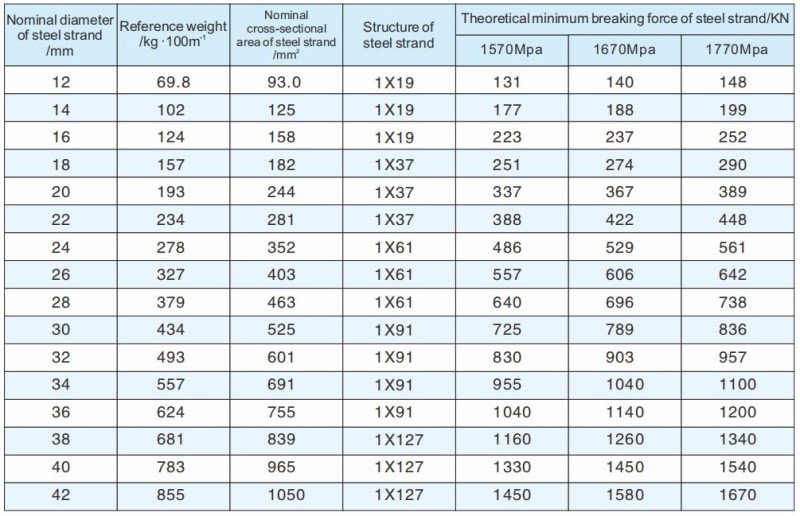

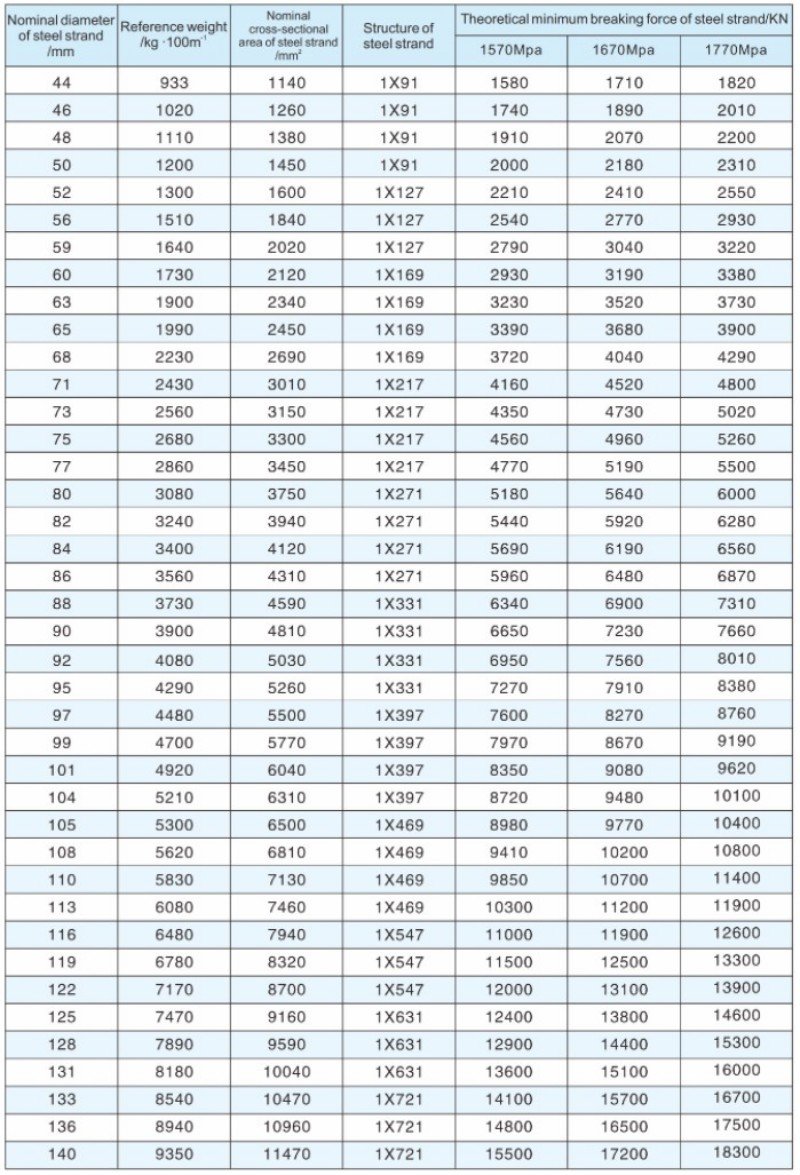

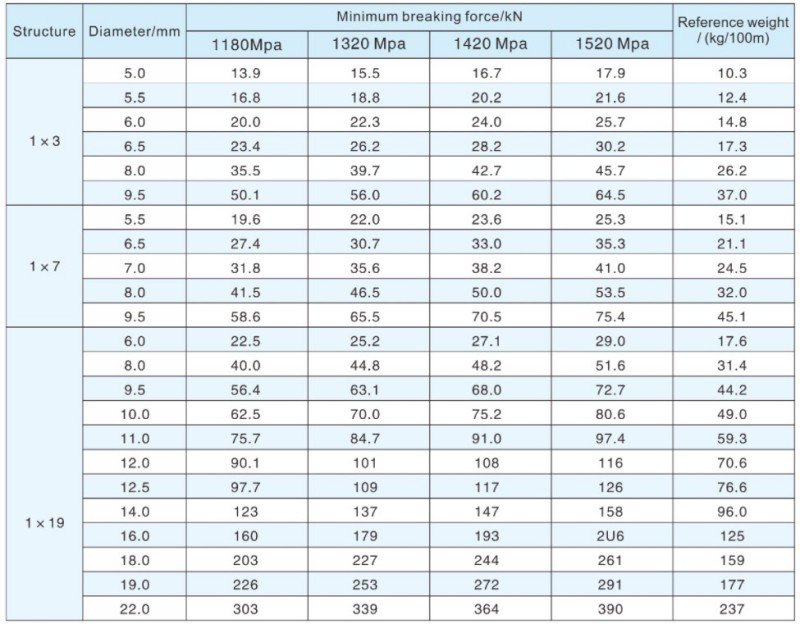

Specification of Stainless Steel Strand

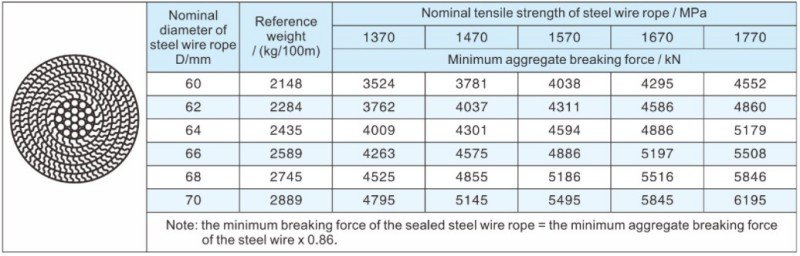

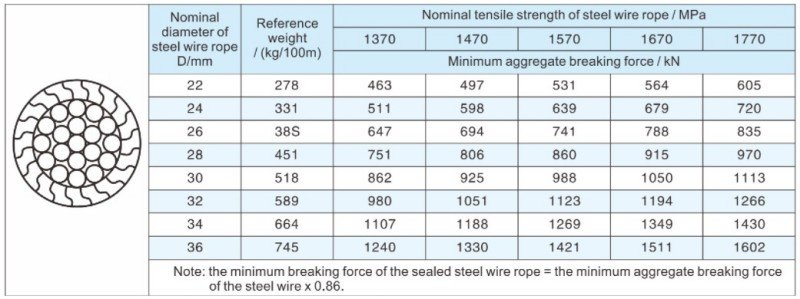

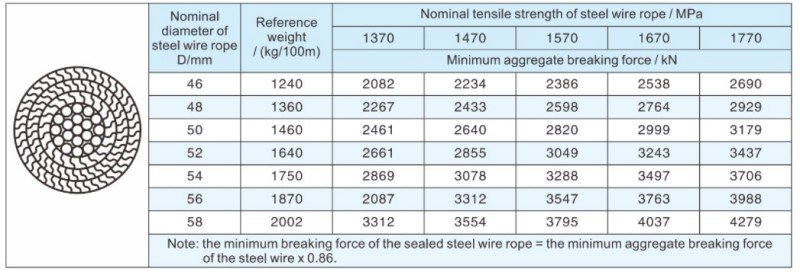

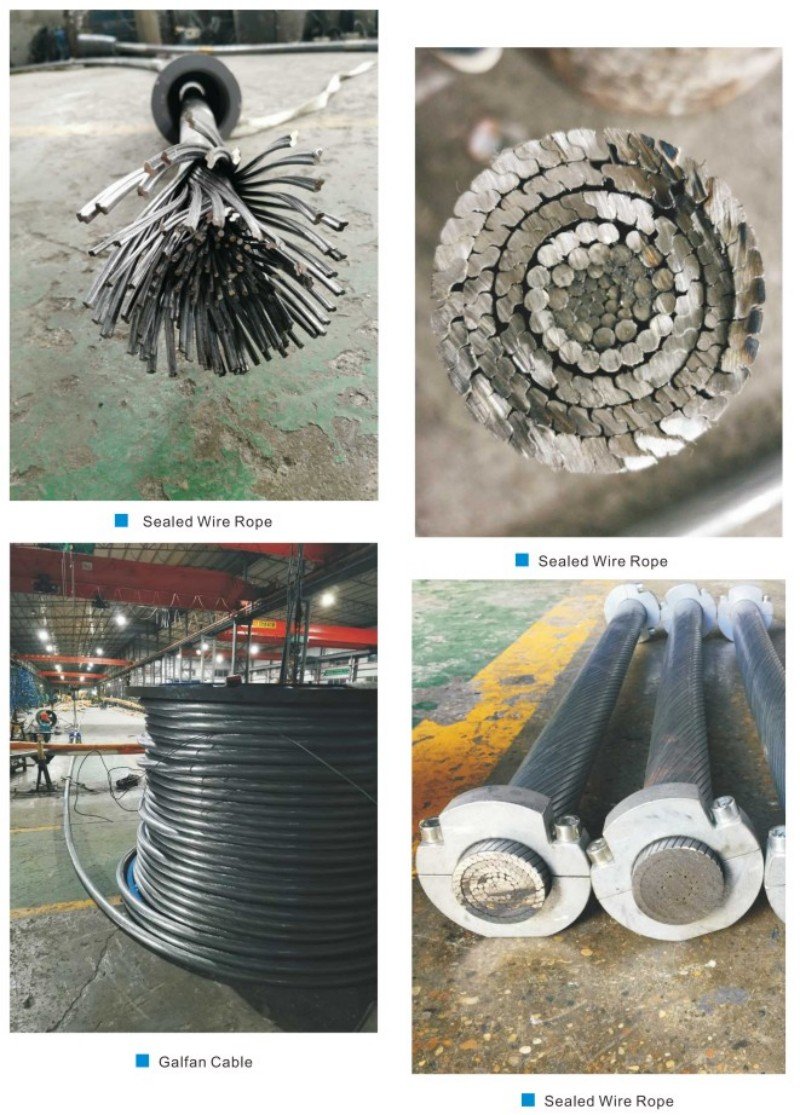

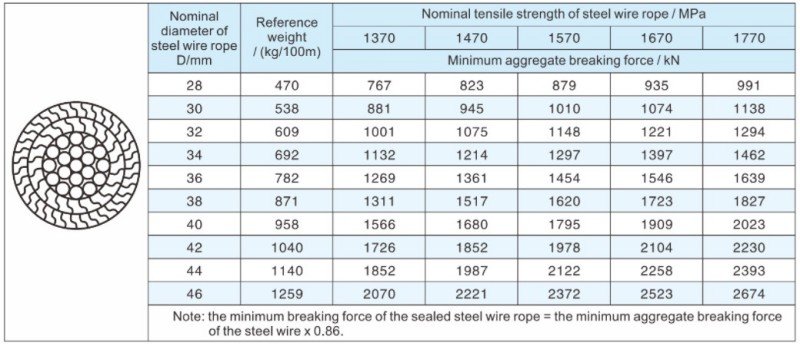

1 . The sealed steel wire rope is classified into one-layer fully sealed, two-layer fully-sealed.three-layer fully-sealed, four-layer fully-sealed and five-layer fully-sealed rope according to the structure of the rope. The rope core is designed as a structure of point contact,point-line contact,line contact or compacted strand;
2. The surface of the sealed steel wire rope for building structure is coated, which can be hot-dip galvanized coating or Galfan coating (zinc-5% aluminum-mixed rare earth alloy coating);
3. The elasticity modulus of the sealed steel wire rope is not less than 1.6X10Mpa.
In terms of Galfan cable, sealed steel wire rope, stainless steel cable and general-purpose steel wire rope, if the strength is equivalent, anchorages of the same specifications can be selected.
Folk-type compression cable
Specification
Notes:
1. The minimum breaking load of the cable is not less than 90% of the nominal breaking load of the cable body.
2. The opening (A) and adjustment volume (T) of the anchorage can be appropriately regulated as required by the project.

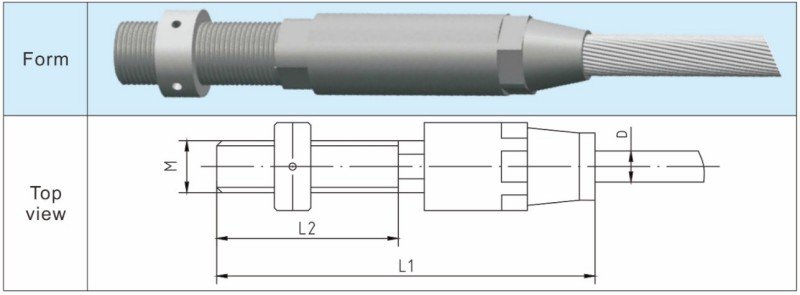

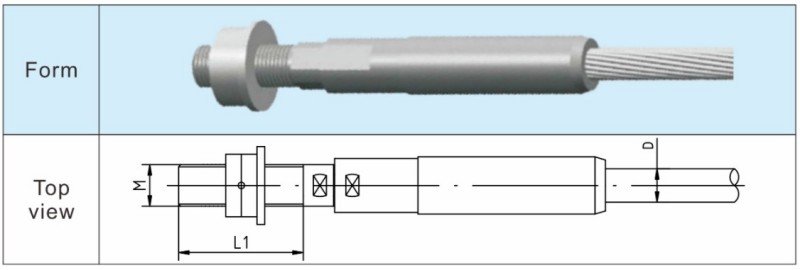

Screw-type compression cable

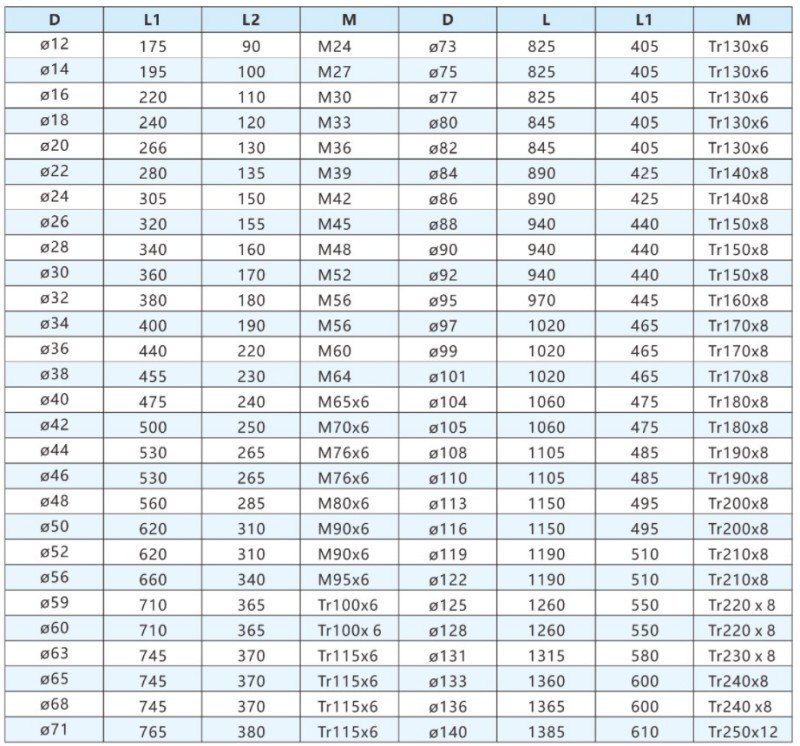

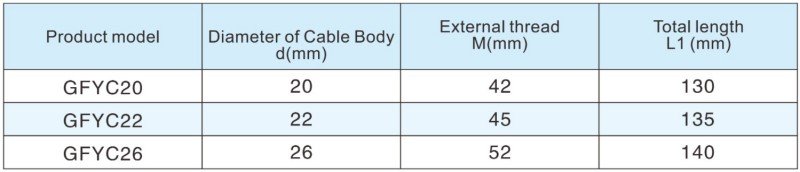

Specification
Notes: 1.The minimum breaking load of the cable is not less than 90% of the nominal breaking load of the cable body.
3. The opening (A) and adjustment volume (T) of the anchorage can be appropriately regulated as required by the project.

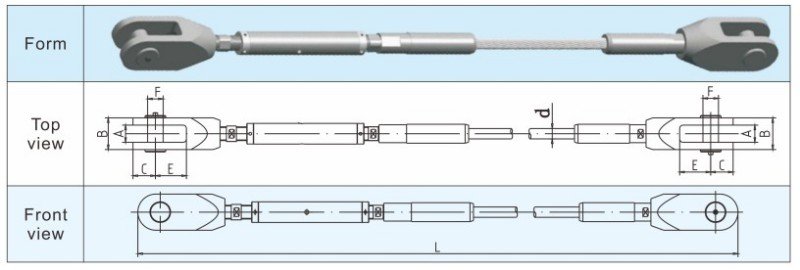

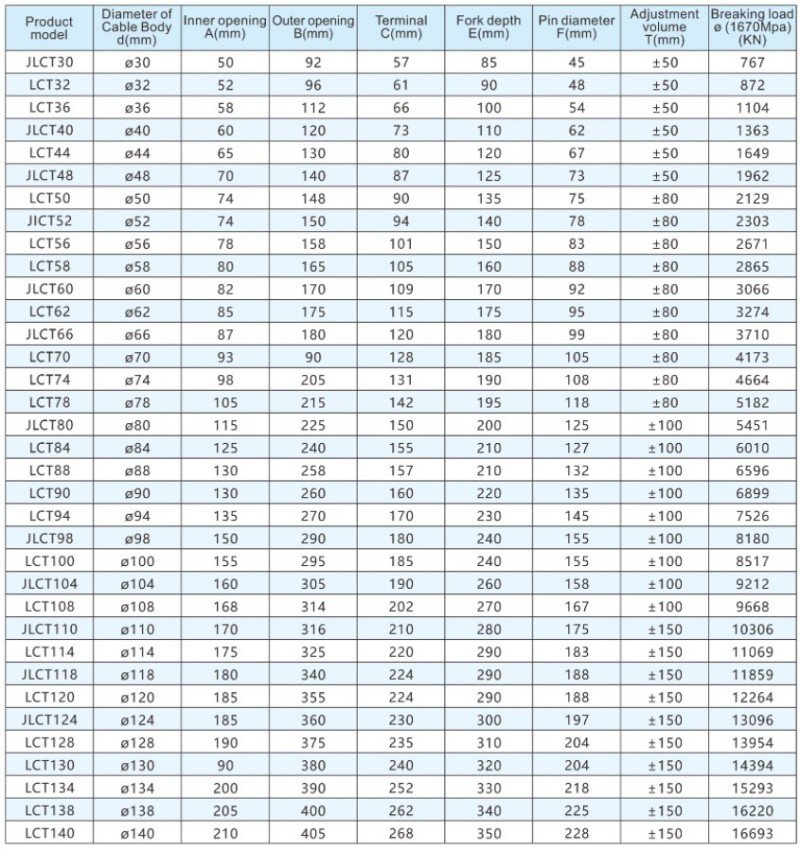

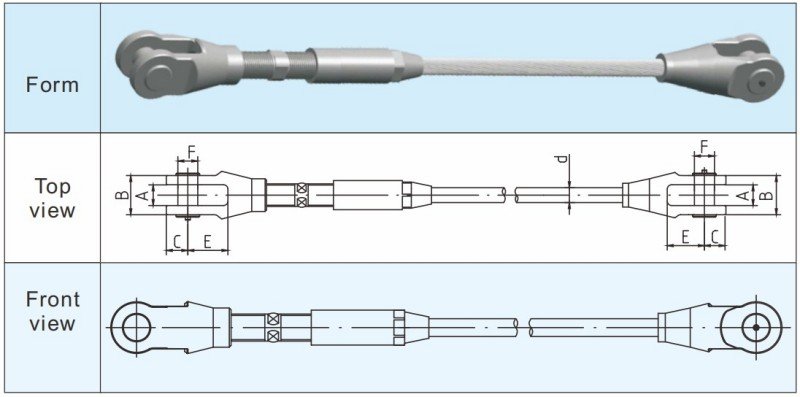

Fork Adjustable Cable with Hot-cast Anchorage
Specification
Notes: 1. The minimum breaking load of the cable is not less than 90% of the nominal breaking load of the cable body.
2. The opening (A) and adjustment volume (T)of the anchorage can be appropriately regulated as required by the project.
3. Where the diameter of the cable body is greater than 140mm, please contact the technical department.
Screw Adjustable Cable with Hot-cast Anchorage
Specification

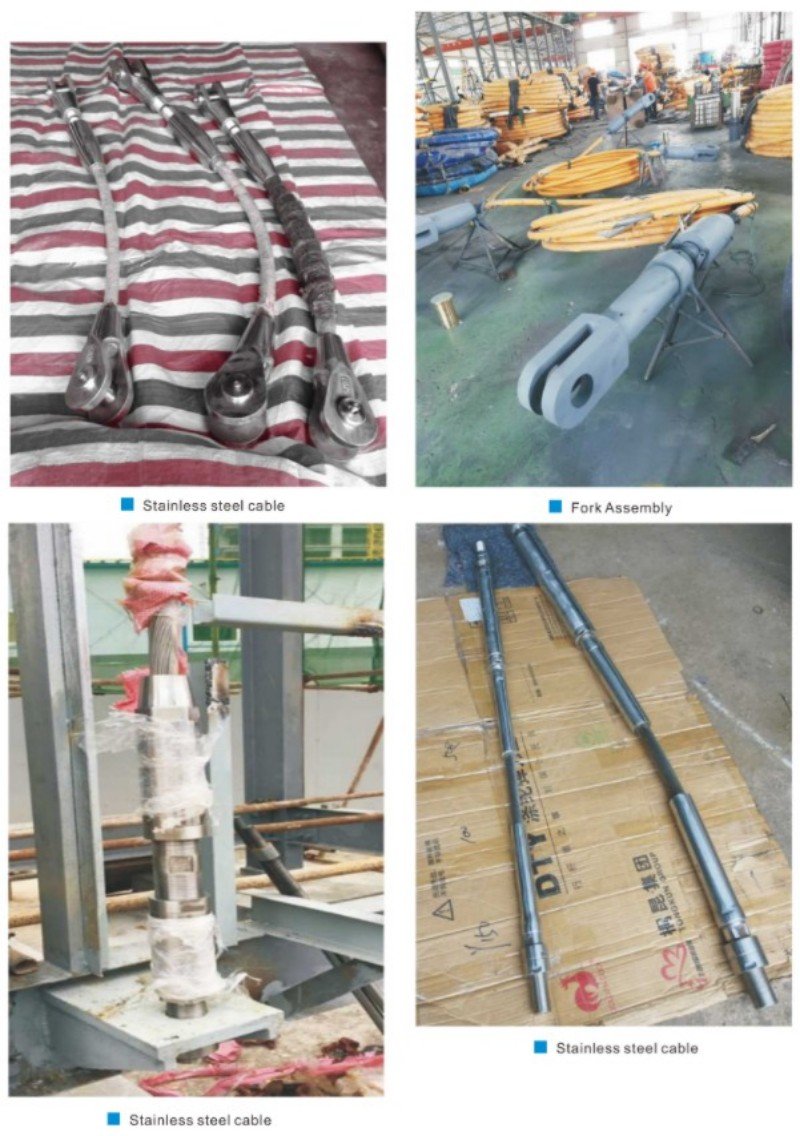

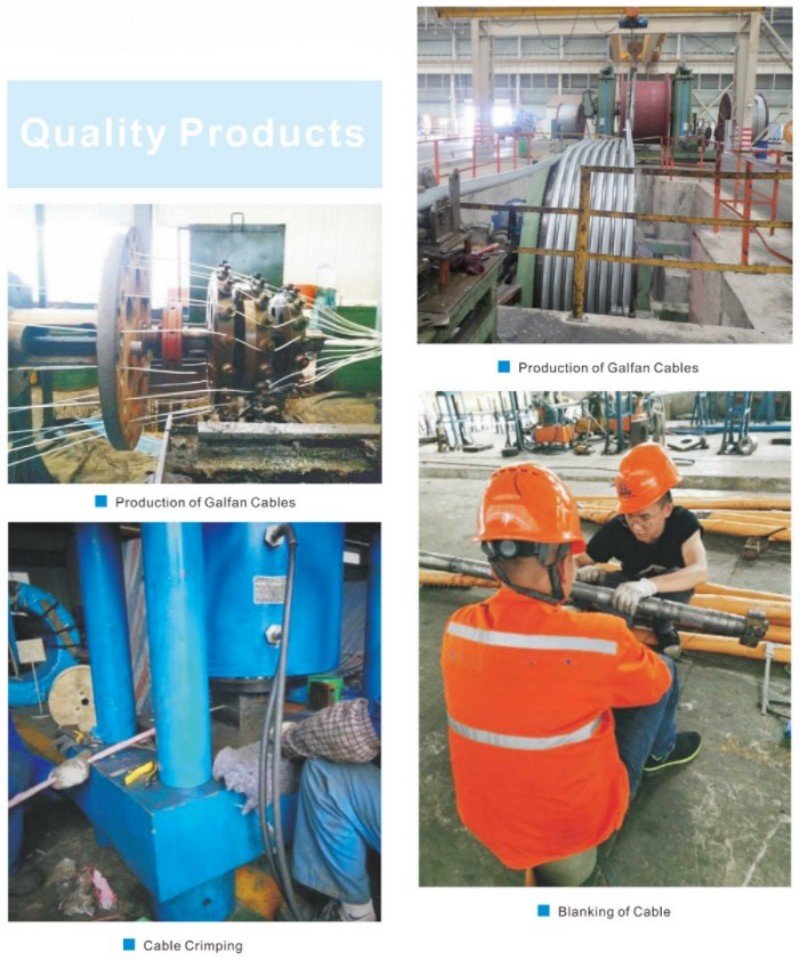

Production and Inspection of cables

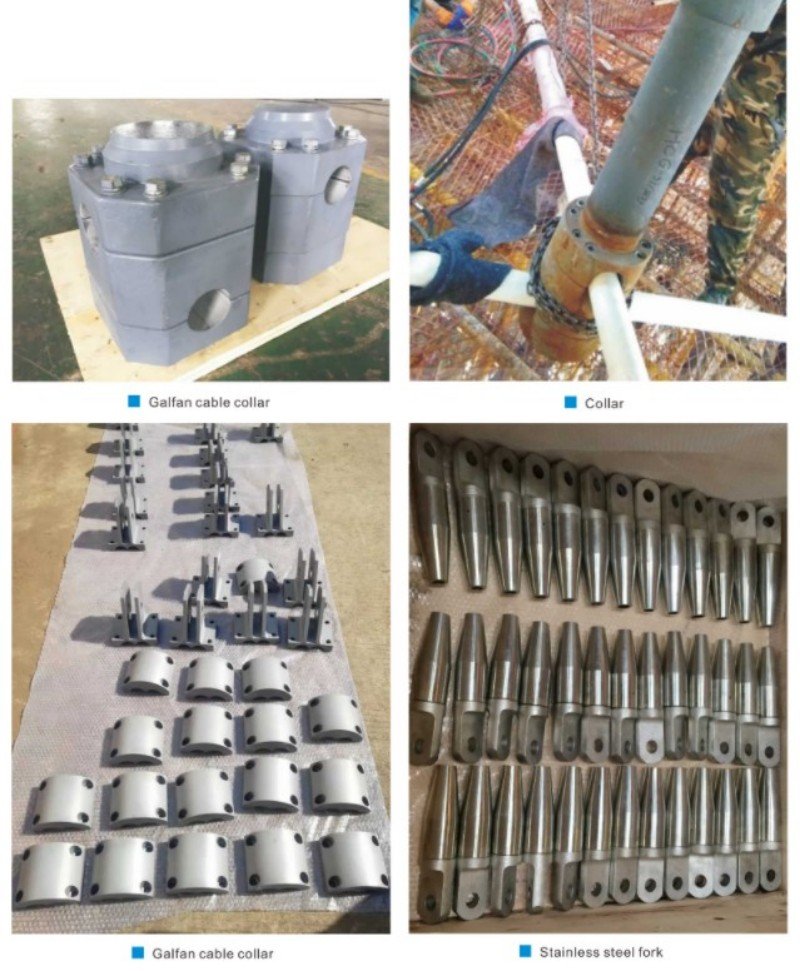

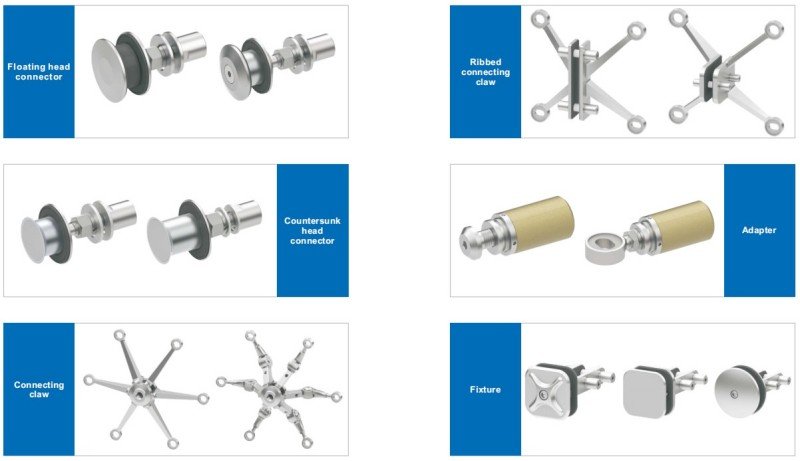

Cable accessories
1. Superior Structural Performance
High Strength & Lightweight: Exceptional strength-to-weight ratio enables super-long spans, significantly reduces the overall structural weight, and lowers foundation costs.
High Anchorage Efficiency: Innovative anchorage design ensures efficient force transfer, with an anchorage efficiency factor typically exceeding 0.95, guaranteeing safety and reliability.
2. Outstanding Aesthetic Value
Visual Lightness: Slim cable profiles and refined connections minimize visual obstruction, giving buildings a transparent, elegant, and modern appearance.
Design Freedom: Provides architects with broad possibilities for realizing complex and innovative architectural forms.
3. Excellent Durability & Cost-Effectiveness
Long-Term Corrosion Resistance: Two main options are available: Galfan-coated cables and stainless steel cables. The Galfan coating offers 2-3 times the corrosion resistance of conventional galvanization, while stainless steel cables provide permanent corrosion resistance with minimal maintenance.
Economic Efficiency: Optimizes structural design, reducing the consumption of traditional materials like steel, resulting in a more competitive life-cycle cost.
4. Proven Compliance & Certification
Products are designed, manufactured, and tested in strict compliance with authoritative international (e.g., EN, ISO) and Chinese (e.g., GB, YB) standards, ensuring reliability and conformity for global projects.

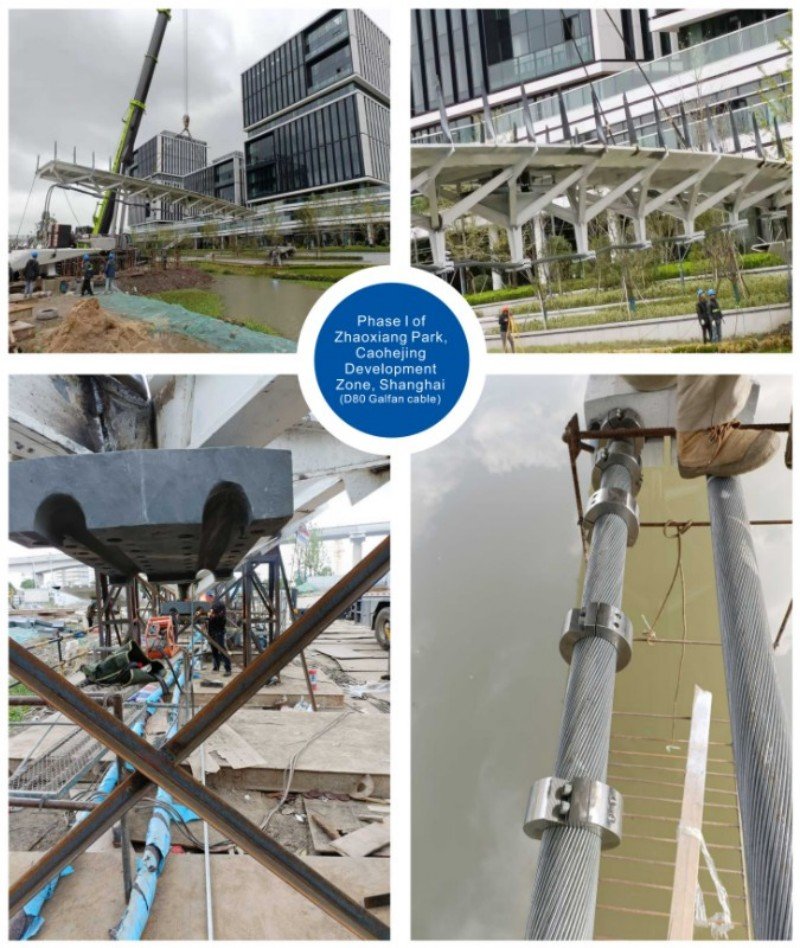

Our structural cable products serve as the "invisible skeleton" of modern architecture, primarily applied in the following two major fields:
1. Primary Structural Systems
Acting as main load-bearing or stabilizing components to create vast, column-free spaces.
Long-Span Roofs: Roof structures for stadiums, airport terminals, railway stations, theaters, and convention centers.
System Types: Cable nets, cable domes, cable trusses, cable-stayed structures, beam-string structures, and suspendomes.

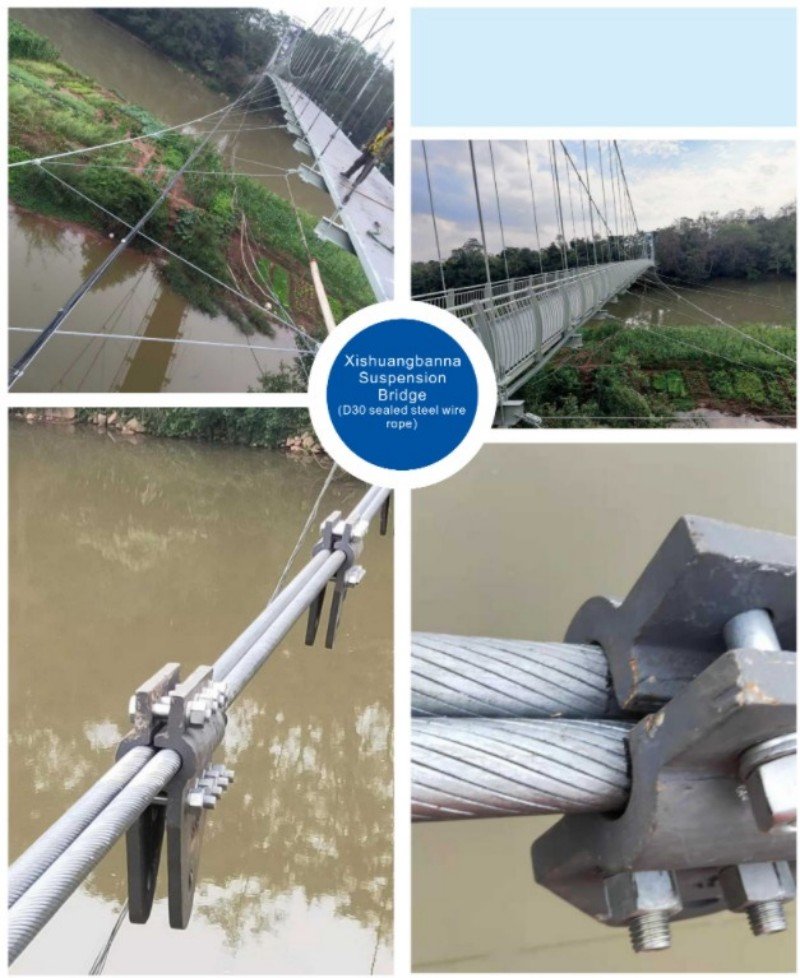

Bridge Engineering: Suspension and cable-stayed systems for pedestrian bridges and scenic crossings.

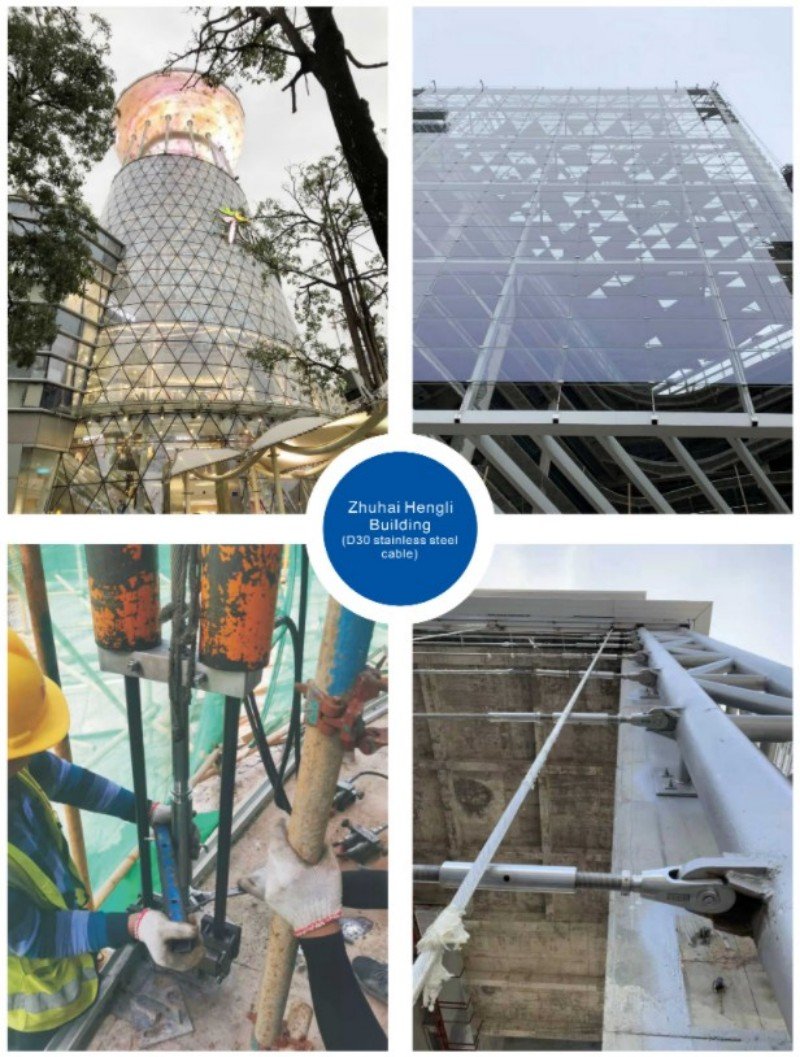

2. Building Envelopes & Facades
Serving as support and architectural elements to achieve light and transparent visual effects.
Glass Curtain Walls: Support systems for all-glass or point-supported glass curtain walls in large commercial complexes, office buildings, and airports.
Architectural Sunshades & Canopies: Tensile cable nets for large-scale outdoor sunshades and entrance canopies.
Interior Design & Spatial Division: Internal support structures for atriums, staircase balustrades, and artistic installations.
As China's most experienced manufacturer of bridge steel tie rods, our products are the core structural components engineered for the world's most demanding infrastructure projects. With an unparalleled project portfolio that includes supplying more major Chinese bridge projects than any other enterprise, we bring proven reliability and scale to global engineering teams. These tension members deliver exceptional tensile strength, superior fatigue resistance, and long service life, making them the trusted choice for engineers and contractors worldwide to ensure structural safety, stability, and durability.
