Bridges, as vital arteries of transportation networks, are inherently susceptible to a multitude of environmental and operational stressors. Among these, seismic activity represents a paramount and potentially catastrophic threat. Earthquakes generate complex ground motions, including intense accelerations and displacements, which can induce severe structural deformations, material fatigue, and ultimately, lead to the progressive failure or sudden collapse of critical bridge components. The ramifications of such structural failures extend far beyond immediate physical damage, encompassing profound economic disruption, tragic loss of life, and prolonged societal impact due to the severance of essential transportation links.
Historically, conventional bridge design methodologies have often employed a 'capacity design' or 'strong-column, weak-beam' philosophy. This approach aims to ensure ductile behavior and dissipate seismic energy through controlled, inelastic deformation of designated structural elements, thereby preventing brittle failure. However, in regions characterized by high seismicity, this traditional strategy, while preventing collapse, can still result in significant structural damage, necessitating extensive and costly repairs, and leading to prolonged periods of operational downtime. The overarching engineering challenge, therefore, is to develop seismic protection solutions that not only guarantee the prevention of catastrophic collapse but also ensure the bridge remains fully operational or rapidly repairable immediately following a seismic event, thereby minimizing repair expenditures and maximizing infrastructure resilience.
For bridge engineers and procurement managers, the critical pain points and design considerations in the context of seismic events include:
Ensuring Paramount Structural Integrity and Public Safety: The foremost concern is the absolute protection of the bridge structure and its users from collapse or severe damage during extreme seismic loading conditions.
Minimizing Post-Earthquake Downtime and Repair Costs: Maintaining post-earthquake functionality is paramount. Extensive structural damage translates into protracted bridge closures, incurring substantial financial burdens for emergency repairs, reconstruction, and the indirect economic costs associated with disrupted traffic flow and commerce.
Achieving Compliance with Stringent Seismic Design Codes: Adherence to continually evolving international and national seismic design standards and specifications (e.g., AASHTO LRFD Bridge Design Specifications, Eurocode EN 1998, Chinese GB standards) mandates the implementation of sophisticated, rigorously tested, and proven seismic isolation technologies.
Guaranteeing Long-Term Durability and Minimal Maintenance: Effective seismic solutions must be inherently robust, exhibit exceptional durability, and require minimal long-term maintenance to ensure a prolonged service life, even when exposed to aggressive environmental conditions.
Optimizing Construction Efficiency and Budgetary Constraints: The selection of earthquake protection systems must also consider efficient installation processes and cost-effectiveness, balancing advanced performance with practical project timelines and financial limitations.
These multifaceted challenges underscore the imperative for advanced seismic protection strategies capable of effectively decoupling the bridge superstructure from hazardous ground motions, efficiently absorbing and dissipating seismic energy, and ensuring the structure's rapid and reliable return to its original position. Bridgent's seismic isolation solutions are meticulously engineered to address these complex demands, offering unparalleled protection, enhanced resilience, and optimized lifecycle performance for modern bridge infrastructure.
Qingdao Bridgent Technology Co., LTD. delivers a comprehensive and integrated suite of products meticulously engineered to form a robust and holistic solution for seismic isolation and earthquake protection in bridges. This strategic combination of advanced components ensures optimal performance, significantly enhanced safety, and extended service life for critical infrastructure assets. The foundation of Bridgent's seismic solution is built upon specialized bearings, which are synergistically complemented by a range of other essential bridge components.

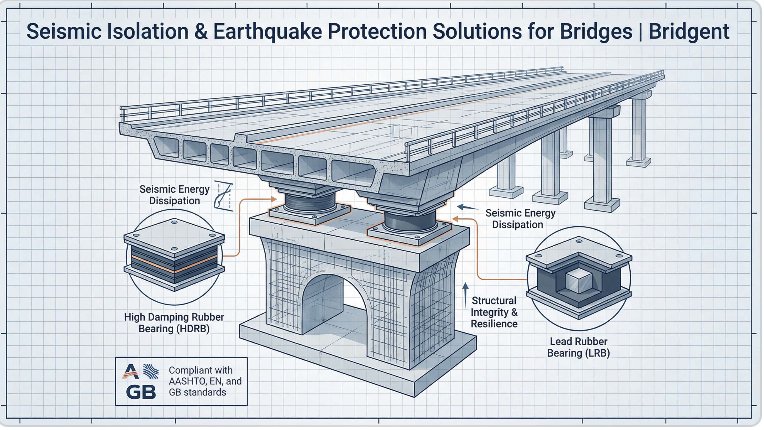

Bridgent's primary offerings in seismic isolation are designed to decouple the bridge superstructure from ground motions, thereby mitigating the transfer of destructive forces. These include:
High Damping Rubber Bearings (HDRB): These bearings represent a cornerstone of modern seismic protection technology. Constructed from specially formulated high-damping rubber laminated with reinforcing steel shims, HDRBs provide exceptional vertical load support while offering substantial horizontal flexibility. During a seismic event, HDRBs effectively lengthen the bridge's natural period, which significantly reduces the inertial forces transmitted to the substructure. The unique high-damping rubber compound is engineered to absorb and dissipate a considerable amount of seismic energy as heat, thereby minimizing structural damage. Furthermore, HDRBs possess excellent self-centering capabilities, ensuring the bridge reliably returns to its original position following an earthquake, reducing residual displacements and facilitating rapid post-event recovery.
Lead Rubber Bearings (LRB): As premium base isolation devices, LRBs feature a central lead core meticulously press-fitted within a laminated stack of elastomeric rubber layers and reinforcing steel plates. The lead core is instrumental in providing exceptional energy dissipation through hysteretic damping, capable of achieving an equivalent viscous damping ratio of up to 30%. This active energy absorption, combined with the inherent horizontal flexibility of the rubber layers, effectively decouples the bridge from severe ground motions. LRBs offer superior vertical load capacity, robust horizontal flexibility, and outstanding corrosion resistance, rendering them an ideal choice for bridge projects situated in high-seismic zones.
While seismic isolation bearings constitute the primary mechanism for earthquake protection, a truly resilient bridge system necessitates the harmonious integration of other high-performance components. Bridgent's comprehensive product matrix ensures that all elements work in concert to achieve maximum structural integrity and longevity:
| Product Category | Role in Seismic Resilience | Specific Product Types (Examples) | | :----------------- | :------------------------- | :-------------------------------- | | Bridge Expansion Joints | Accommodate thermal expansion/contraction and structural movements, allowing controlled displacement during seismic events without compromising deck integrity. | Modular Expansion Joints, Finger Expansion Joints, Strip Seal Expansion Joints, Elastomeric Expansion Joints | | CFRP (Carbon Fiber Reinforced Polymer) | Enhance the ductility and load-carrying capacity of existing bridge elements, providing structural strengthening and repair capabilities that complement the isolation system. | CFRP laminates, CFRP wraps | | Post-Tensioning Systems | Introduce compressive forces to concrete elements, improving strength, durability, and crack resistance. Crucial for enhancing the performance of bridge decks and girders against dynamic seismic forces. | Pre-stressing tendons, anchorages, ducts | | Hydraulic Systems | Primarily used for precise installation and maintenance operations, such as synchronous jacking for bearing replacement. Can also support monitoring and adjustment of bridge components to ensure optimal functioning of the seismic isolation system. | Hydraulic jacks, lifting systems | | Noise Barriers | While not directly involved in seismic protection, these elements are part of the overall bridge system and must be designed to remain functional and structurally sound even when the bridge undergoes seismic-induced movements. | Various barrier types designed for structural compatibility |
By offering this comprehensive integrated product matrix, Qingdao Bridgent Technology Co., LTD. provides bridge engineers and project managers with a singular, reliable source for high-performance solutions. This approach addresses the multifaceted challenges of modern bridge construction and seismic resilience, ensuring that every component functions synergistically to deliver maximum protection, enhanced safety, and optimized longevity for critical infrastructure.
Bridgent's seismic isolation and earthquake protection solutions are distinguished by their superior technical advantages and an unwavering commitment to global standard compliance. Our offerings are not merely individual components; they represent meticulously engineered systems designed for peak performance, exceptional durability, and steadfast reliability, even in the most demanding and seismically active environments.
Bridgent's advanced seismic isolation bearings, including High Damping Rubber Bearings (HDRB) and Lead Rubber Bearings (LRB), are specifically engineered to deliver critical performance characteristics:
Advanced Energy Dissipation: Both HDRBs and LRBs are designed for significant seismic energy absorption and dissipation. HDRBs achieve this through specially formulated high-damping rubber compounds, typically exhibiting a damping ratio between 10% and 18%. LRBs, conversely, leverage the plastic deformation of a central lead core, providing an even higher equivalent viscous damping ratio of up to 30%. This superior energy dissipation dramatically reduces the inertial forces transmitted to both the bridge superstructure and substructure, effectively preventing severe damage and ensuring the bridge's functionality post-earthquake.
Flexible Period Shift: A key principle of seismic isolation is to lengthen the natural vibration period of the structure. By introducing substantial horizontal flexibility, Bridgent's bearings effectively shift the bridge's response away from the dominant, destructive frequencies of earthquake ground motions. This fundamental decoupling mechanism significantly reduces the seismic forces acting on the bridge, thereby protecting its structural integrity.
Exceptional Self-Centering Capability: A critical feature of resilient seismic isolation systems is the ability to return the structure to its original position after an earthquake. Both HDRBs and LRBs are designed with excellent self-centering properties. The inherent elasticity of the rubber layers, often augmented by the dynamic recovery of the lead core in LRBs, ensures that the bridge minimizes residual displacement. This capability is vital for reducing post-earthquake repair costs and facilitating a rapid resumption of service.
High Vertical Load Capacity with Horizontal Flexibility: Bridgent's bearings are engineered to simultaneously support the immense vertical loads imposed by the bridge superstructure while accommodating substantial horizontal movements during a seismic event. This dual functionality is paramount for maintaining structural stability under gravity loads while effectively managing seismic-induced displacements without compromising safety.
Durability and Longevity: The long-term performance of seismic isolation systems is crucial. Bridgent's products are manufactured using only high-quality materials and advanced production processes. For instance, the internal steel plates within HDRBs are fully sealed within resilient rubber for comprehensive corrosion protection. LRBs incorporate lead with a minimum purity of 99.9% and robust steel plates. Furthermore, protective EPDM covers are utilized to shield rubber components from environmental degradation, such as ozone and ultraviolet radiation, ensuring an extended service life with minimal maintenance requirements.
Temperature Stability and Creep Resistance: Our advanced rubber formulations are designed to exhibit minimal sensitivity to temperature variations and possess superior creep resistance. This ensures consistent and reliable performance across diverse climatic conditions and throughout the entire lifespan of the bridge.
Qingdao Bridgent Technology Co., LTD. is deeply committed to manufacturing products that not only meet but consistently exceed the most rigorous international and national standards for bridge engineering and seismic design. Our comprehensive compliance framework includes, but is not limited to, the following key standards:
AASHTO (American Association of State Highway and Transportation Officials): Bridgent's bearings and expansion joints are meticulously designed and rigorously tested in strict accordance with the AASHTO LRFD Bridge Design Specifications and the AASHTO Guide Specifications for Seismic Isolation Design. This adherence ensures their suitability and acceptance for projects across North America and other global regions that adopt AASHTO standards.
EN (European Standards): Our products comply with all relevant European Norms, including EN 15129 for anti-seismic devices and the EN 1337 series for structural bearings. This compliance underscores our capability to serve the European market and projects that necessitate CE marking, demonstrating our commitment to European quality and safety benchmarks.
GB (Guobiao Standards - Chinese National Standards): As a leading Chinese manufacturer, Bridgent strictly adheres to the comprehensive and robust GB standards. These national standards reflect advanced engineering practices and ensure that our products meet the highest quality and safety requirements for projects within China and internationally where GB standards are recognized and respected.
Bridgent's manufacturing facilities operate under stringent quality management systems, typically certified to ISO 9001. This certification ensures full traceability, consistent product quality, and a commitment to continuous improvement across all production stages. Each product undergoes rigorous testing, including comprehensive material property tests, shear deformation tests, and fatigue tests, to validate its performance against specified design parameters and international codes. This unwavering commitment to technical excellence and global standard compliance provides bridge engineers and procurement managers with the absolute assurance that Bridgent's solutions are not only innovative but also globally recognized for their superior quality, exceptional durability, and reliable performance.
Effective installation and diligent maintenance are absolutely paramount to fully realizing the intended benefits of seismic isolation and earthquake protection systems in bridges. Qingdao Bridgent Technology Co., LTD. extends its commitment beyond product delivery by providing practical insights and comprehensive support, thereby ensuring the seamless integration and sustained long-term performance of our advanced solutions. This proactive approach demonstrates our dedication to client success and the enduring resilience of critical infrastructure.

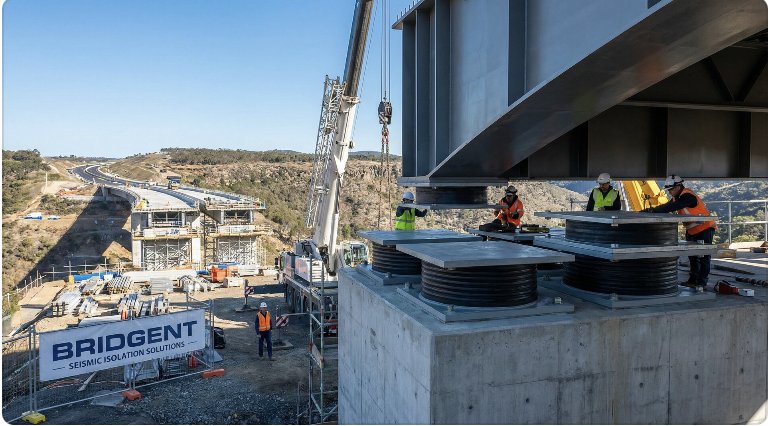

The successful deployment of seismic isolation systems hinges on meticulous planning and precise execution during the installation phase. Pre-installation planning is crucial, encompassing detailed site surveys, thorough geotechnical investigations, and precise coordination with all other bridge components. Bridgent’s technical team is equipped to assist in developing comprehensive installation plans, carefully considering factors such as site access, the selection of appropriate lifting equipment, and the design of temporary support structures. This ensures a streamlined and safe installation environment.
Bearing placement and alignment for seismic isolation bearings, such as HDRBs and LRBs, demand exceptional precision. This often necessitates the use of synchronous jacking systems to carefully lift the bridge superstructure, facilitating the removal of existing bearings (if applicable) and the accurate positioning of new ones. Proper shimming and meticulous leveling are indispensable steps to guarantee uniform load distribution across the bearings and to ensure their optimal performance under both static and dynamic conditions.
Secure connection details are critical for anchoring the bearings to both the substructure and superstructure. This typically involves robust anchor bolts and connection plates, which must be installed strictly according to design specifications to prevent any slippage or failure during severe seismic events. Bridgent provides detailed engineering drawings and expert guidance for these crucial connections, ensuring structural integrity. Furthermore, when integrating expansion joints with seismic bearings, careful consideration must be given to the movement capacity of these joints. They must be designed to accommodate the larger displacements anticipated from an isolated bridge during an earthquake without incurring damage or impeding the essential function of the seismic bearings.
Throughout the installation, rigorous quality control is vital. This includes verifying all material specifications, meticulously checking dimensions, ensuring the proper torqueing of bolts, and thoroughly documenting every step of the installation process. Bridgent offers specialized supervision and comprehensive training programs for installation teams, ensuring strict adherence to industry best practices and project-specific requirements.
To ensure the sustained efficacy and longevity of seismic isolation systems, a proactive long-term maintenance strategy is indispensable. Routine visual inspections are essential for detecting any early signs of wear, damage, or environmental degradation. This involves systematically checking the rubber elements for cracks, delamination, or bulging, and inspecting all steel components for corrosion or loose connections. The frequency of these inspections should be heightened in the initial years post-installation and, critically, after any significant seismic event.
Regular cleaning and debris removal are also vital. The accumulation of dirt, debris, or vegetation around bearings and expansion joints can impede their designed movement and accelerate material degradation. Consistent cleaning practices are necessary to maintain optimal functionality. While Bridgent’s bearings often incorporate protective EPDM covers, additional measures for component protection may be required in extremely harsh environments to shield rubber from excessive UV exposure, ozone, or chemical spills, thereby extending their operational life.
For bridges of critical importance, the integration of advanced monitoring systems is highly recommended. This can include sensor technologies such as accelerometers and displacement transducers, which provide real-time data on bearing performance and the structural response during seismic events. Such data enables proactive maintenance interventions and informed decision-making regarding the system’s health. Although designed for exceptional longevity, components may eventually require replacement or repair. Bridgent’s designs often facilitate the easier replacement of individual bearings or expansion joint modules, minimizing disruption and associated costs. Our dedicated technical support team is available to provide expert guidance on repair methodologies and to supply genuine replacement parts, ensuring the continued integrity of the seismic protection system.
Selecting the appropriate partner for seismic isolation and earthquake protection is a pivotal decision that directly influences the safety, longevity, and operational continuity of critical bridge infrastructure. Qingdao Bridgent Technology Co., LTD. distinguishes itself as a premier global partner, offering unparalleled expertise, rigorously proven solutions, and an unwavering commitment to client success. Here are the compelling reasons why Bridgent is the definitive choice for your next bridge project:
Bridgent boasts extensive global project experience, evidenced by a rich portfolio of successful implementations across diverse geographical and seismic conditions worldwide. This invaluable real-world experience is brought to bear on every new challenge, with our solutions having been successfully deployed in a wide array of bridge types, from long-span cable-stayed bridges to complex viaducts. This demonstrates our exceptional adaptability and proven performance in the most critical applications.
At the core of Bridgent’s philosophy is a dedication to cutting-edge R&D capabilities. We continuously invest in robust research and development initiatives, fostering collaborations with leading academic institutions and engineering experts. This commitment ensures that our products consistently incorporate the latest advancements in material science, seismic engineering, and manufacturing technologies, thereby providing clients with state-of-the-art solutions that are prepared to meet future demands and challenges.
Our comprehensive product portfolio extends beyond specialized seismic bearings to include an integrated matrix of essential bridge components such as expansion joints, CFRP (Carbon Fiber Reinforced Polymer), post-tensioning systems, hydraulic systems, and noise barriers. This integrated approach facilitates a holistic solution to bridge engineering, guaranteeing seamless compatibility and optimized performance across all critical components, all sourced from a single, reliable supplier.
Bridgent maintains an uncompromising commitment to quality and durability. Our manufacturing processes strictly adhere to the most stringent international quality management standards, including ISO 9001 certification. We utilize only premium-grade materials and conduct rigorous testing at every stage of production, thereby guaranteeing that our products deliver exceptional durability, unwavering reliability, and an extended service life, even when subjected to the harshest environmental conditions.
Clients benefit from expert technical support and customization provided by Bridgent’s team of highly skilled engineers and technical specialists. We offer comprehensive support, ranging from initial design consultation and project planning through to installation and ongoing post-project maintenance. Our ability to provide customized solutions, meticulously tailored to the unique requirements of each project, ensures optimal performance and cost-effectiveness for every client.
Ultimately, Qingdao Bridgent Technology Co., LTD. is driven by an unwavering commitment to customer satisfaction. Our clients are at the forefront of everything we do, and we are dedicated to building long-term partnerships founded on trust, transparency, and highly responsive service. Our extensive global network ensures timely delivery and localized support, regardless of your project’s location.
For bridge engineers and procurement managers seeking robust, reliable, and technologically advanced seismic isolation and earthquake protection solutions, Bridgent offers the unparalleled expertise, superior products, and dedicated support necessary to ensure the enduring safety and resilience of your infrastructure. Partner with us to build bridges that not only stand the test of time but also withstand the forces of nature. Visit us at https://www.bridgematerials.com/ to explore how we can safeguard your next critical project.
