Part 1: Design Standards and PrinciplesBridge expansion joints represent one of the most critical yet often overlooked components of modern bridge infrastructure. These specialized systems are engineered to accommodate the complex movements that occur in bridge structures due to thermal variations, traffic loads, structural deformation, and environmental factors. A properly designed and installed expansion joint can extend the service life of a bridge by decades, while a poorly designed or maintained joint can lead to catastrophic structural failure, safety hazards, and extremely costly repairs. Understanding the design standards, principles, and best practices for bridge expansion joints is essential for engineers, contractors, and bridge owners who areresponsible for ensuring the longevity and safety of bridge infrastructure.
1.1 International Design Standards Overview
Bridge expansion joints must comply with internationally recognized design standards that ensure safety, durability, and performance. The two primary standards used worldwide are:
AASHTO LRFD (American Association of State Highway and Transportation Officials - Load and Resistance Factor Design):
The AASHTO LRFD specification is widely adopted in North America and many international projects. It emphasizes reliability and safety through load and resistance factors, with Section 14.5 specifically addressing bridge joints. The standard requires comprehensive movement calculations considering all load cases, including thermal expansion, creep and shrinkage, live load deflection, and seismic movements. AASHTO mandates fatigue design verification for high-traffic applications,ensuring that joints can withstand millions of load cycles without premature failure. The safety factor for AASHTO is typically 2.0 or higher, providing a conservative design approach.
Eurocode Standards (EN 1991-2 and EN 1993-2):
The Eurocode standards are harmonized design standards used throughout Europe and many other regions. These standards implement Limit State Design (LSD) methodology, which considers both ultimate limit states (ULS) and serviceability limit states (SLS). Eurocodes provide detailed traffic load models and partial safety factors, with emphasis on both ultimate and serviceability limit states. The standards require consideration of material durability and environmental factors, including freeze-thaw cycles, de-icing salt exposure, and chemical attack. The safety factor for Eurocodes is typically 1.5, reflecting a more refined probabilistic approach.
Both standards require that expansion joints be designed to accommodate all anticipated movements without imposing excessive stresses on the joint system or adjacent bridge structures. The design must ensure that the joint functions properly throughout its entire service life, typically 30-50 years, with minimal maintenance requirements.

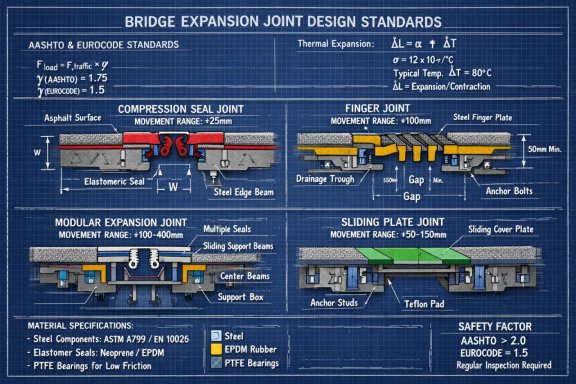

Figure 1: Bridge Expansion Joint Design Standards - AASHTO & Eurocode Specifications with Multiple Joint Types
1.2 Design Principles and Movement Calculation
The fundamental design principle for bridge expansion joints is to accommodate all anticipated movements while maintaining structural integrity and providing a safe, smooth riding surface for traffic.
Key Movement Components:
1. Thermal Expansion and Contraction
The most significant movement factor is caused by temperature variations. Concrete and steel expand when heated and contract when cooled. The thermal expansion is calculated using the formula: ΔL = α × L × ΔT
Where:
• ΔL = change in length (mm)
• α = coefficient of thermal expansion (typically 10-12 × 10⁻⁶ per °C for concrete and steel)
• L = original length of the bridge section (mm)
• ΔT = maximum temperature change (°C)
For example, a 100-meter bridge section with a temperature change of 80°C would experience:
ΔL = 11 × 10⁻⁶ × 100,000 × 80 = 88 mm of movement
This calculation demonstrates why proper joint sizing is critical - undersizing the joint can lead to excessive compression or tension stresses.
2. Concrete Creep and Shrinkage
Concrete undergoes long-term deformation due to:
• Drying shrinkage: typically 0.03-0.08% of the original length, occurring over 5-10 years •Creep under sustained loads: can reach 2-3 times the elastic deformation, occurring over 20-30 years
• These effects are critical for long-span bridges and must be included in design calculations
3. Live Load Deflection
Traffic loads cause temporary deflections that the joint must accommodate:
• Vertical movements: typically ±15-50 mm depending on span length and traffic loads •Horizontal movements from braking and acceleration forces
• Dynamic effects from moving vehicles, especially heavy trucks
4. Seismic Movements
In seismic regions, expansion joints must accommodate:
• Longitudinal displacements: ±50-400 mm depending on seismic zone classification •Transverse movements and rotations
• Combination of movements in multiple directions simultaneously
5. Differential Settlement
Uneven settlement between bridge supports can cause:
• Vertical misalignment: up to ±50 mm • Rotational movements at the joint •Skew development in bridge decks
Design Capacity:
The expansion joint must be sized to accommodate the maximum anticipated movement with appropriate safety factors. Typical movement ranges are:
• Small joints: ±25-50 mm (used for short spans, low traffic)
• Medium joints: ±50-150 mm (most common for typical highway bridges)
• Large joints: ±150-400 mm (used for long spans, high-temperature environments)
• Mega joints: ±400 mm and above (used for very long spans, extreme climates)

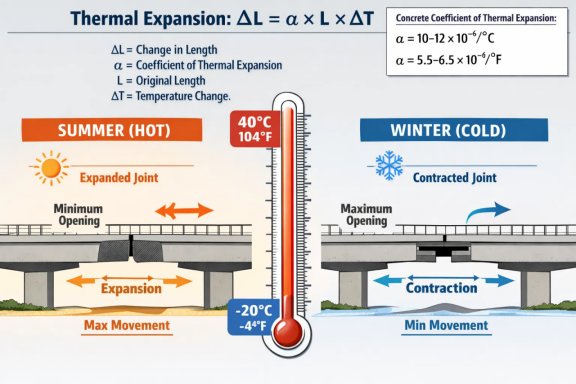

Figure 2: Thermal Expansion and Contraction - Summer vs Winter Joint Movement
When selecting and designing expansion joints for your bridge project, several critical factors must be carefully considered to ensure optimal performance and longevity:
Environmental Conditions:
• Climate zone and temperature extremes (minimum and maximum temperatures) •Humidity and moisture exposure levels
• De-icing salt and chemical exposure (critical for bridges in cold climates) •UV radiation and weathering effects on elastomer materials
• Freeze-thaw cycles frequency and severity
Traffic and Load Requirements:
• Average daily traffic (ADT) and peak hourly traffic • Heavy vehicle percentage and axle loads
• Traffic patterns and peak loading times • Noise and vibration tolerance levels
• Riding comfort requirements for users
Bridge Characteristics:
• Span length and structure type (simply supported, continuous, cable-stayed) • Material composition (concrete, steel, composite materials)
• Expected service life (typically 30-50 years) • Maintenance accessibility and contractor availability
• Aesthetic requirements and visibility
Performance Requirements:
• Waterproofing effectiveness and drainage capacity • Durability and maintenance intervals
• Noise and vibration control • Riding surface smoothness and safety
• Cost-effectiveness over lifecycle (initial cost vs. maintenance and replacement costs)
Material Selection:
• Elastomer type (Neoprene, EPDM, natural rubber) - each with different properties •Steel grade and corrosion protection methods
• Sealant compatibility and durability • Bearing capacity and stiffness characteristics
• Fatigue resistance for high-traffic applications
Installation and Maintenance:
• Ease of installation and quality control procedures •Inspection and maintenance requirements
• Repair and replacement procedures •Availability of spare parts and replacement materials
• Contractor expertise and experience with similar projects
Proper construction and installation of bridge expansion joints is absolutely critical to their performance and longevity. Even the most carefully designed expansion joint system can fail if not properly installed. This section provides detailed guidance on construction procedures, quality control measures, and inspection protocols based on international best practices and real-world project experience.
2.1 Pre-Construction Preparation and Planning
Successful expansion joint installation begins with thorough pre-construction planning and preparation. This phase typically takes 2-4 weeks and involves multiple stakeholders.
Site Assessment and Planning:
1. Conduct detailed site surveys to verify:
• Existing bridge dimensions and structural condition •Current joint condition and performance issues (if replacement)
• Environmental and traffic conditions •Access and work area constraints
• Weather and seasonal considerations •Utility locations and conflicts
2. Verify design specifications:
• Confirm joint type, size, and movement capacity •Check material specifications and certifications
• Ensure compatibility with existing bridge structure •Review installation procedures and requirements
• Validate all design calculations and assumptions •Verify that design meets AASHTO LRFD or Eurocode requirements
3. Prepare detailed construction schedule:
• Plan traffic management and lane closures •Coordinate with relevant authorities and traffic management agencies
• Schedule work during optimal weather conditions •Arrange equipment and material delivery
• Plan for contingencies and weather delays •Establish communication protocols with all stakeholders
Material Preparation and Verification:
1. Inspect all materials upon delivery:
• Verify material certifications and quality documents •Check for shipping damage or defects
• Confirm material specifications match design requirements •Store materials in appropriate conditions (temperature and humidity controlled)
• Protect from weather and contamination •Establish material traceability and documentation
2. Equipment and tools preparation:
• Inspect all equipment for proper functioning •Calibrate measurement and testing instruments
• Prepare safety equipment and barriers •Arrange for specialized equipment (if required)
• Ensure adequate lighting and work area preparation •Test all equipment before mobilization to site
3. Personnel and contractor qualifications:
• Verify contractor experience and qualifications •Ensure workers have proper training and certifications
• Arrange for quality control inspectors •Establish clear communication protocols
• Plan for safety briefings and training •Verify insurance and bonding requirements
Surface Preparation:
1. Remove existing joint material (if replacement):
• Carefully remove old expansion joint system •Clean out all debris and deteriorated material
• Remove any loose concrete or damaged edges •Inspect underlying structure for damage
• Document condition with photographs
2. Clean and prepare joint opening:
• Use high-pressure water jet or sandblasting to remove contaminants •Remove all dirt, dust, and contaminants
• Ensure surfaces are dry before proceeding (moisture content < 4%) •Repair any damaged concrete or steel edges
• Create proper surface profile for bonding (typically 2-3 mm roughness)
3. Verify dimensions and alignment:
• Measure joint opening dimensions at multiple locations •Check for proper alignment and level
• Verify that opening matches design specifications (±5 mm tolerance) •Document any deviations from design
• Make corrections before proceeding
2.2 Detailed Construction Process and Techniques
The construction process for bridge expansion joints involves 8 critical steps that must be executed with precision. Each step typically takes 1-3 days depending on joint size and complexity.
Step 1: Formwork and Barrier Installation (1-2 days)
• Install temporary formwork to contain concrete and grou •Set up safety barriers and warning signs
• Establish traffic control measures (lane closures, detours) •Protect adjacent areas from spillage and debris
• Ensure proper drainage of work area •Typical formwork cost: $2,000-5,000
Step 2: Steel Reinforcement Installation (1-2 days)
• Place steel edge beams and support plates according to design drawings •Install anchor studs or bolts with proper spacing (typically 300-500 mm)
• Verify alignment and spacing of reinforcement •Check for proper positioning and elevation
• Secure all components to prevent movement during concrete placement •Typical material cost: $3,000-8,000
Step 3: Concrete Casting (2-3 days)
• Prepare concrete mix according to specifications (typically 35-40 MPa strength) •Pour concrete around joint components
• Consolidate concrete to remove air voids using vibrators •Finish surface to match surrounding deck
• Allow proper curing time: 7 days for initial strength, 28 days for full strength •Typical concrete cost: $1,500-3,000
Step 4: Joint Assembly and Alignment (1-2 days)
• Install expansion joint assembly in prepared opening •Set joint to proper middle position for movement accommodation
• Verify alignment in both longitudinal and transverse directions •Check elevation and ensure level surface (tolerance ±5 mm)
• Secure assembly temporarily during installation •Use laser levels and precision measuring instruments
Step 5: Elastomer Seal Installation (1 day)
• Insert elastomer seals into edge beam grooves •Use proper installation tools to avoid damage
• Ensure seals are fully seated and locked in place •Check for proper compression and contact
• Verify waterproofing effectiveness with water spray test •Typical seal cost: $2,000-5,000
Step 6: Grouting and Filling (1-2 days)
• Prepare grout mixture according to specifications •Inject grout under joint to fill voids completely
• Ensure complete filling without air pockets •Allow grout to cure properly (typically 7 days)
• Remove excess grout and clean surface •Typical grouting cost: $1,000-2,000
Step 7: Final Finishing (1-2 days)
• Polish and finish riding surface to match surrounding deck •Remove temporary formwork and barriers
• Clean all surfaces thoroughly •Apply any required sealants or coatings
• Prepare for final inspection •Typical finishing cost: $1,000-2,000
Step 8: Quality Testing and Inspection (1-2 days)
• Perform compression and load tests •Verify movement accommodation capability
• Test waterproofing effectiveness •Inspect all connections and fasteners
• Document all test results •Typical testing cost: $2,000-4,000
Total Construction Timeline:** 10-20 days depending on joint size and complexity
Total Construction Cost:** $13,500-31,000 for a typical medium-sized joint
Figure 3: Eight-Step Bridge Expansion Joint Installation Process with Detailed Procedures
Effective quality control throughout the construction process ensures that the expansion joint meets design specifications and performs as intended. A dedicated quality control inspector should be present throughout the construction process.
Critical Quality Control Checkpoints:
1. Material Inspection (Before Installation)
• Verify material certifications and test reports •Check material dimensions and tolerances
• Inspect for defects or damage •Confirm material properties meet specifications
• Document all inspection results •Acceptance criteria: All materials must have valid certifications and pass visual inspection
2. Surface Preparation Verification
• Measure joint opening dimensions at 5+ locations (tolerance: ±5 mm) •Check surface cleanliness and dryness
• Verify surface profile and roughness •Confirm proper drainage
• Document surface conditions with photographs •Acceptance criteria: All dimensions within tolerance, surface clean and dry
3. Component Installation Control
• Verify edge beam positioning (tolerance: ±10 mm) •Check anchor bolt alignment and spacing (tolerance: ±5 mm)
• Confirm proper elevation and level (tolerance: ±5 mm) •Inspect steel reinforcement placement
• Verify temporary securing of components •Acceptance criteria: All components within specified tolerances
4. Concrete/Grout Quality Control
• Test concrete slump and workability (typically 100-150 mm slump) •Perform compressive strength tests (7-day and 28-day)
• Verify concrete consolidation and void-free filling •Check grout injection pressure and volume
• Confirm proper curing conditions •Acceptance criteria: 7-day strength ≥ 70% of design, 28-day strength ≥ 100% of design
5. Elastomer Seal Installation
• Verify seal insertion and seating (visual inspection) •Check for proper compression and contact
• Confirm seal integrity without damage •Test seal flexibility and movement capability
• Document seal installation details •Acceptance criteria: Seals properly seated, no visible damage, proper compression
6. Alignment and Movement Verification
• Measure joint opening at multiple points (minimum 5 locations) •Verify joint is positioned at design middle point
• Test movement accommodation capability •Check for proper alignment in all directions
• Document all measurements •Acceptance criteria: Joint opening within ±5 mm of design, proper alignment
7. Waterproofing and Drainage
• Perform water spray test to verify sealing •Check drainage system functionality
• Inspect for any water leakage •Verify proper water flow direction
• Document waterproofing performance •Acceptance criteria: No water penetration, proper drainage
8. Load Testing
• Perform static load tests on joint system •Verify load distribution and bearing capacity
• Check for any movement or slippage •Inspect for cracks or damage under load
• Document load test results •Acceptance criteria: No movement under design loads, no visible damage
Final inspection and acceptance procedures ensure that the expansion joint installation meets all design and quality requirements.
Pre-Opening Inspection:
• Visual inspection of entire joint system •Measurement of joint opening and alignment
• Verification of seal integrity and waterproofing •Check for any visible defects or damage
• Confirmation of proper finishing and cleanliness
Performance Testing:
• Thermal cycling test (if applicable) •Movement accommodation test
• Load bearing capacity verification •Waterproofing effectiveness test
• Vibration and noise testing
Documentation and Records:
• Compile all inspection and test reports •Document any defects and corrective actions
• Record material certifications and test results •Prepare as-built drawings and specifications
• Create maintenance manual for future reference
Acceptance Criteria:
✓ All dimensions within specified tolerances (±5 mm) ✓ Material properties meet design specifications
✓ No visible defects or damage ✓ Waterproofing test results satisfactory (no water penetration)
✓ Movement accommodation verified ✓ Load bearing capacity confirmed
✓ Surface finish meets requirements ✓ All documentation complete and accurate
Sign-Off and Handover:
• Obtain contractor certification of completion •Verify all punch-list items resolved
• Conduct final walkthrough inspection •Obtain client acceptance and sign-off
• Transfer maintenance documentation to owner
Part 3: Common Problems and Solutions
Despite proper design and installation, bridge expansion joints can experience various problems during their service life. This section addresses the most common issues encountered in the field and provides practical, field-tested solutions based on real-world experience.
3.1 Joint Cracking Issues and Repair Methods
Joint cracking is one of the most common problems encountered in bridge expansion joints, typically caused by excessive loads, material fatigue, or improper installation. Cracks can range from hairline fractures (< 0.1 mm) to severe structural cracks (> 2 mm).
Causes of Joint Cracking:
1. Thermal Stress Concentration
• Inadequate joint gap sizing leading to excessive compression or tension •Thermal cycling causing fatigue in concrete and steel
• Incompatibility between materials with different thermal expansion coefficients •Extreme temperature variations beyond design assumptions
• Typical cause: 30-40% of cases
2. Structural Overload
• Heavier traffic than originally designed for •Improper load distribution due to settlement or misalignment
• Dynamic impact loads from vehicles •Cumulative fatigue from repeated loading
• Typical cause: 25-35% of cases
3. Material Defects
• Poor concrete quality or improper curing •Weak concrete-steel interface
• Defective welds or fasteners •Material degradation from environmental exposure
• Typical cause: 15-20% of cases
4. Installation Issues
• Improper joint positioning during installation •Inadequate concrete consolidation creating voids
• Incorrect anchor bolt tightening •Misalignment of joint components
• Typical cause: 10-15% of cases
Identification and Assessment:
Visual Inspection:
• Look for visible cracks in concrete around joint •Check for crack patterns (linear, branching, or map cracking)
• Measure crack width using crack gauge (typical: 0.1-5 mm) •Document crack location, orientation, and length
• Assess crack severity: hairline (<0.1 mm), minor (0.1-0.5 mm), moderate (0.5-2 mm), severe (>2 mm)
• Take photographs for documentation
Detailed Investigation:
• Use ultrasonic testing to detect internal cracks •Perform concrete core sampling for strength verification
• Inspect steel components for corrosion or fatigue •Check for water infiltration through cracks
• Assess structural integrity and safety
Repair Solutions:
For Hairline Cracks (< 0.1 mm):
1. Cleaning: Use compressed air to clean crack thoroughly 2. Surface Preparation: Dry the crack completely
3. Sealant Application: Apply flexible polyurethane or epoxy sealant 4. Finishing: Smooth and finish to match surrounding surface
5. Monitoring: Regular inspection for crack propagation
Cost: $500-1,000 per repair
For Minor to Moderate Cracks (0.1-2 mm):
1. Crack Preparation:
• Cut crack into V-shape using diamond blade (30-45° angle) •Clean out all debris and dust
• Dry thoroughly (moisture content < 4%)
2. Filler Application:
• Apply epoxy mortar or polyurethane sealant •Fill crack completely without voids
• Overfill slightly to allow for finishing
3. Reinforcement (if needed):
• Install epoxy-bonded steel plates across crack
• Use carbon fiber strips for additional reinforcement
• Ensure proper bonding and curing
4. Finishing:
• Sand smooth to match surrounding surface • Apply protective coating if required
• Allow proper curing before opening to traffic
Cost: $2,000-5,000 per repair
For Severe Cracks (> 2 mm):
1. Structural Assessment: Evaluate structural safety and load-bearing capacity 2. Repair Planning: Determine if joint replacement is necessary
3. Temporary Measures: Apply temporary waterproofing to prevent water infiltration 4. Permanent Repair: Consider joint replacement if structural integrity is compromised
5. Monitoring: Implement continuous monitoring during and after repair
Cost: $10,000-30,000+ depending on severity
Prevention Measures:
• Ensure proper joint sizing based on accurate thermal calculations • Use high-quality materials with proper certifications
• Implement strict quality control during installation • Maintain proper drainage to prevent water accumulation
• Conduct regular inspections to detect problems early • Limit traffic loads to design specifications
• Maintain proper maintenance schedule
3.2 Seal Failure Problems and Solutions
Seal failure is a critical problem that compromises the waterproofing function of expansion joints and can lead to rapid deterioration of bridge structures. Seal failure typically occurs after 15-25 years of service, depending on environmental conditions and maintenance.
Common Causes of Seal Failure:
1. Material Degradation
• UV radiation exposure causing elastomer hardening • Ozone attack leading to cracking and brittleness
• Chemical attack from de-icing salts and pollutants • Thermal cycling causing material fatigue
• Age-related deterioration (typical seal life: 15-25 years)
• Typical cause: 40-50% of cases
2. Installation Defects
• Improper seal insertion or incomplete seating • Damage during installation process
• Inadequate compression or contact with joint edges • Incompatible sealant materials
• Poor surface preparation before seal installation • Typical cause: 20-30% of cases
3. Excessive Movement
• Joint movement exceeding seal capacity • Inadequate joint sizing leading to over-compression
• Differential settlement causing misalignment • Rotational movements not accommodated by seal design
• Typical cause: 15-20% of cases
4. Environmental Factors
• Extreme temperature variations • Freeze-thaw cycles causing seal damage
• Water and moisture infiltration • Debris accumulation in joint
• Prolonged water exposure • Typical cause: 10-15% of cases
Symptoms of Seal Failure:
• Water leakage through joint during rainfall • Visible seal deterioration, cracking, or separation
• Loss of seal elasticity and flexibility • Debris accumulation in joint opening
• Discoloration or staining around joint • Odor of degraded rubber or sealant
• Visible gaps between seal and joint edges
Inspection and Diagnosis:
Visual Assessment:
• Inspect seal condition and appearance • Check for visible cracks, tears, or separation
• Assess seal compression and contact • Look for water stains or leakage evidence
• Document seal condition with photographs
Water Infiltration Test:
• Perform water spray test on joint • Observe for any water leakage
• Check drainage system functionality • Assess waterproofing effectiveness
• Document test results
Material Testing:
• Sample seal material for laboratory analysis • Test elastomer hardness and flexibility
• Perform tensile strength testing • Check for chemical degradation
• Verify material properties
Repair and Replacement Solutions:
For Minor Seal Damage:
1. Cleaning and Preparation:
• Remove debris and contaminants from joint • Clean seal surface thoroughly
• Dry completely before proceeding • Inspect underlying joint components
2. Temporary Waterproofing:
• Apply flexible sealant over damaged areas • Use polyurethane or silicone-based products
• Ensure complete coverage of damaged areas • Allow proper curing before opening to traffic
3. Monitoring:
• Inspect regularly for seal condition • Plan for permanent repair or replacement
• Monitor for water infiltration • Document all observations
Cost: $1,000-2,000
For Significant Seal Failure:
1. Seal Removal:
• Carefully remove failed seal material • Clean joint edges thoroughly
• Remove any adhesive residue • Inspect joint components for damage
2. Joint Preparation:
• Repair any damaged joint edges • Ensure proper joint alignment
• Verify joint dimensions and opening • Clean and dry all surfaces
3. New Seal Installation:
• Select appropriate replacement seal material • Consider upgraded elastomer (e.g., EPDM vs. Neoprene)
• Install new seal according to manufacturer specifications • Verify proper compression and seating
• Apply protective coating if required
4. Testing and Verification:
• Perform water spray test • Verify waterproofing effectiveness
• Check seal flexibility and movement capability • Document installation and test results
Cost: $5,000-15,000
Prevention and Maintenance:
• Use high-quality elastomer materials (EPDM recommended for harsh environments)
• Ensure proper installation with adequate compression • Maintain regular cleaning to remove debris
• Apply protective coatings to extend seal life • Implement preventive maintenance schedule
• Monitor seal condition regularly • Plan for seal replacement every 15-25 years
• Consider upgrading to advanced seal materials during replacement

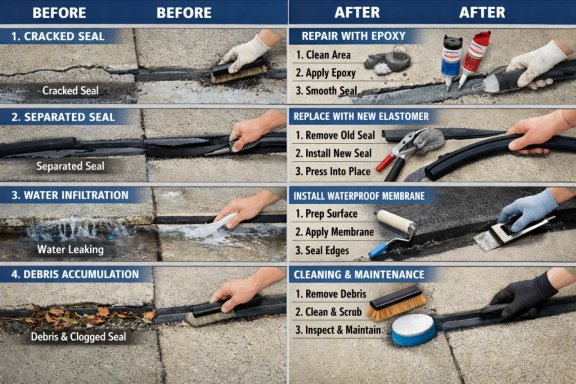

Figure 4: Common Seal Failure Problems and Practical Solutions with Before/After Comparisons
Uneven settlement of bridge supports can cause misalignment of expansion joints, leading to poor performance and accelerated deterioration. Settlement can occur gradually over years or suddenly due to structural events.
Causes of Uneven Settlement:
1. Foundation Issues
• Differential settlement of bridge supports • Soil consolidation under sustained loads
• Erosion or scour at bridge foundations • Inadequate foundation design or construction
• Seismic activity or ground movement • Typical cause: 35-45% of cases
2. Structural Changes
• Long-term creep and shrinkage of concrete • Steel member elongation or contraction
• Bearing system deterioration or failure • Support column cracking or damage
• Corrosion-induced volume changes • Typical cause: 25-35% of cases
3. Environmental Factors
• Freeze-thaw cycles affecting foundations • Water infiltration and soil saturation
• Thermal expansion of support structures • Seasonal ground movement
• Vegetation growth affecting soil stability • Typical cause: 15-20% of cases
4. Traffic and Loading
• Increased traffic loads over time • Cumulative damage from repeated loading
• Dynamic effects from heavy vehicles • Improper load distribution
• Typical cause: 5-10% of cases
Symptoms of Uneven Settlement:
• Visible misalignment of joint opening • Uneven joint opening at different locations
• Gaps between joint and bridge deck • Cracking in concrete around joint
• Water leakage at joint edges • Rough riding surface at joint
• Visible settlement cracks in bridge structure• Tilting or rotation of bridge deck
Assessment and Monitoring:
Measurement Procedures:
1. Establish reference points on bridge structure 2. Measure joint opening at multiple locations (typically every 1-2 meters)
3. Record measurements with high precision (±1 mm) 4. Repeat measurements over time to track changes
5. Compare measurements to design specifications
Structural Analysis:
• Calculate differential settlement between supports • Determine rotation and tilt of bridge deck
• Assess impact on joint performance • Evaluate structural safety
• Determine if corrective action is needed
Repair and Correction Solutions:
For Minor Misalignment (< 10 mm):
1. Shimming and Adjustment:
• Install shims under joint components • Gradually adjust joint to proper alignment
• Verify alignment after each adjustment • Ensure smooth transition
Cost: $3,000-8,000
2. Seal Adjustment:
• Reposition elastomer seal if possible • Adjust seal compression
• Verify waterproofing effectiveness • Monitor for future movement
3. Monitoring:
• Establish regular inspection schedule • Track settlement over time
• Plan for permanent correction if needed
For Significant Misalignment (> 10 mm):
1. Temporary Measures:
• Apply temporary waterproofing • Install temporary support if needed
• Implement traffic restrictions if necessary • Monitor structural safety
2. Permanent Repair:
• Determine root cause of settlement • Repair or reinforce foundations if needed
• Consider bridge jacking and leveling • Complete joint realignment or replacement
Cost: $20,000-50,000+
3. Joint Replacement:
• If settlement is ongoing or severe • Remove existing joint system
• Repair underlying structure • Install new joint at proper alignment
• Verify alignment and performance
Cost: $30,000-80,000+
Prevention Measures:
• Ensure proper foundation design and construction • Implement proper drainage to prevent soil saturation
• Maintain bridge in good condition to prevent deterioration • Monitor settlement regularly
• Address any signs of settlement immediately • Limit traffic loads to design specifications
• Maintain proper maintenance schedule
Water infiltration through expansion joints is a major cause of bridge deterioration, leading to corrosion of reinforcement and structural damage. Water can penetrate joints through cracks, gaps, or failed seals, carrying de-icing salts and pollutants that accelerate corrosion.
Causes of Water Infiltration:
1. Seal Failure
• Cracked or deteriorated elastomer seals • Separation of seal from joint edges
• Inadequate seal compression • Improper seal installation • Typical cause: 40-50% of cases
2. Joint Misalignment
• Gaps between seal and bridge deck • Uneven joint opening • Tilted or rotated joint
• Settlement causing misalignment • Typical cause: 20-30% of cases
3. Drainage System Failure
• Clogged drainage channels • Blocked drainage outlets • Inadequate drainage capacity
• Improper drainage design • Typical cause: 15-20% of cases
4. Design Deficiencies
• Inadequate waterproofing design • Poor drainage provisions
• Incompatible materials • Insufficient seal overlap • Typical cause: 5-10% of cases
Consequences of Water Infiltration:
• Corrosion of reinforcing steel (can reduce structural capacity by 50%+)
• Concrete deterioration and spalling • Structural weakening and capacity loss
• Accelerated bridge deterioration • Safety hazards from structural failure
• Expensive repairs and potential bridge closure • Environmental contamination from salt and pollutants
Water Infiltration Detection:
Visual Inspection:
• Look for water stains below joint • Check for rust stains on underside • Inspect for efflorescence (white deposits)
• Observe for active water leakage • Document location and extent of infiltration
Water Spray Test:
• Apply controlled water spray to joint • Observe for water penetration • Identify specific leak locations
• Assess waterproofing effectiveness • Document test results
Moisture Measurement:
• Use moisture meters to detect water • Measure moisture content in concrete
• Identify moisture penetration depth • Assess damage extent
Waterproofing Solutions:
For Active Leakage:
1. Immediate Temporary Measures:
• Apply temporary waterproof coating • Install temporary drainage system
• Redirect water away from critical areas • Monitor for water infiltration
Cost: $2,000-5,000
2. Permanent Waterproofing:
• Seal all gaps and cracks • Apply waterproof membrane
• Install proper drainage system • Ensure complete coverage
3. Seal Replacement:
• Remove failed seal • Install new waterproof seal system
• Verify waterproofing effectiveness • Test with water spray
Cost: $5,000-15,000
Comprehensive Waterproofing System:
1. Surface Preparation:
• Clean all surfaces thoroughly • Remove any loose material
• Repair cracks and damage • Ensure dry conditions
2. Membrane Installation:
• Apply waterproof membrane over joint area • Extend membrane beyond joint edges
• Ensure complete coverage • Allow proper curing
3. Drainage System:
• Install drainage channels under joint • Connect to main drainage system
• Ensure proper slope for water flow • Maintain drainage outlets
4. Seal Installation:
• Install elastomer seal in joint • Ensure proper compression and seating
• Verify waterproofing effectiveness • Apply protective coating if needed
5. Testing and Verification:
• Perform water spray test • Monitor for any leakage
• Verify drainage system functionality • Document results
Cost: $15,000-30,000
Long-term Maintenance:
• Regular inspection of joint condition • Cleaning of drainage system (quarterly)
• Monitoring for water infiltration • Prompt repair of any damage
• Replacement of seals as needed • Application of protective coatings
• Documentation of maintenance activities
Preventive Measures:
• Ensure proper joint design with adequate waterproofing • Use high-quality seal materials
• Implement strict quality control during installation • Maintain proper drainage system
• Conduct regular inspections • Address any problems immediately
• Plan for seal replacement every 15-25 years • Consider upgrading waterproofing during maintenance
Conclusion
Bridge expansion joints are critical infrastructure components that require careful design, precise installation, and ongoing maintenance to ensure optimal performance and longevity. This comprehensive guide has covered the essential aspects of expansion joint systems:
Key Takeaways:
1. Design Excellence:Proper design based on international standards (AASHTO LRFD, Eurocodes) ensures that joints can safely accommodate all anticipated movements while maintaining structural integrity.
2. Construction Quality: Meticulous attention to construction procedures, strict quality control, and thorough inspection are essential to achieve the design intent and ensure long-term performance.
3. Problem Prevention: Understanding common problems and their causes enables proactive maintenance and early intervention to prevent costly failures and bridge deterioration.
4. Lifecycle Management:Regular inspection, preventive maintenance, and timely repairs extend the service life of expansion joints and protect the entire bridge structure.
5. Professional Expertise: Engaging experienced engineers and contractors with proven expertise in expansion joint design and installation is crucial for project success.
For International Customers:
Our company specializes in providing high-quality bridge expansion joint solutions that meet international standards and exceed customer expectations. We offer:
• Expert design services based on AASHTO LRFD and Eurocode standards • High-quality materials and components with full certifications
• Professional installation services with strict quality control • Comprehensive warranty and after-sales support
• Training and technical support for maintenance and repairs • Customized solutions for specific project requirements
Whether you are planning a new bridge project or addressing problems with existing expansion joints, our team is ready to provide the expertise and support you need to ensure successful outcomes.
Contact us today to discuss your expansion joint requirements and discover how we can help optimize your bridge infrastructure.
For more information about our bridge expansion joint solutions,
please contact our technical team.
We are committed to providing the highest quality products and services
to meet your international bridge infrastructure needs.
Westcoast New Area, Qingdao City ,Shandong Province ,China
