The strip seal expansion joint is one of the most widely used joint types for bridge decks with movement ranges up to 80 mm. Its design is elegantly simple: two steel edge beams are cast into the concrete nosing on either side of the joint gap, and a profiled elastomeric strip seal is inserted into matching slots in the edge beams to provide the watertight seal. When correctly designed and installed, a strip seal joint can provide 20–30 years of maintenance-free service. When poorly installed, it can fail within months, leading to water ingress, concrete deterioration, and costly emergency repairs.
This guide provides a comprehensive overview of strip seal joint installation best practices, drawing on the most common causes of premature failure identified in field investigations on highway and railway bridge projects worldwide.
The elastomeric strip seal is the critical component of the system. It is typically manufactured from polychloroprene (neoprene) or EPDM rubber, compounded to provide resistance to ozone, UV radiation, and the chemical attack from de-icing salts. The seal profile is designed so that it can be stretched and inserted into the edge beam slots without the use of adhesives — the seal is retained by its own elastic recovery force against the slot walls.
The steel edge beams are typically hot-dip galvanised or epoxy-coated structural steel sections, designed to carry the full traffic loading across the joint gap and to provide a stable, precisely dimensioned slot for the seal. The edge beams are anchored to the bridge deck by welded studs or reinforcing bars cast into the concrete nosing.

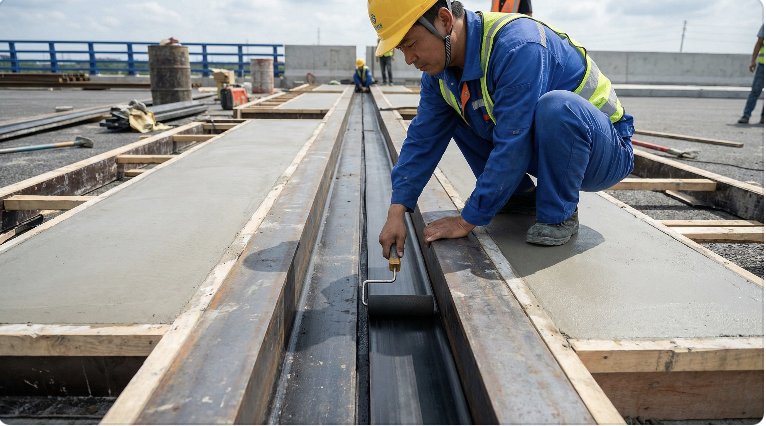

Correct installation technique for a strip seal expansion joint: the elastomeric seal is inserted into the edge beam slots using a roller tool, ensuring it is correctly seated without twisting or over-stretching. The concrete nosing must have achieved full design strength before the seal is installed.
The concrete nosing is the zone of bridge deck concrete immediately adjacent to the joint gap. It is subjected to the most severe loading of any part of the bridge deck — high-stress concentration from vehicle wheel loads, impact from vehicles crossing the joint, and chemical attack from water and de-icing salts. Consequently, the nosing concrete must be of the highest quality, typically a high-strength, low-permeability mix with a minimum compressive strength of 40 MPa.
For joint replacement projects, the existing concrete nosing must be broken out to the full depth of the edge beam anchorage — typically 200–300 mm — using hydrodemolition or pneumatic breakers. The reinforcement must be cleaned of all rust and contamination. The new nosing concrete must be placed and cured in strict accordance with the specification, as premature trafficking of the nosing is one of the most common causes of early failure.
The steel edge beams must be set to the correct position and level before the nosing concrete is placed. Key requirements are: Level — the top surface of the edge beam must be flush with the adjacent bridge deck surface, within a tolerance of ±1 mm; Gap width — the gap between the two edge beams must be set to the correct value for the installation temperature, accounting for the thermal pre-set; Alignment — the edge beams must be parallel to each other and perpendicular to the bridge axis.
The edge beams are typically held in position by temporary steel spacers or a purpose-made setting frame during concrete placement. The spacers must be removed before the concrete achieves its initial set.
The elastomeric strip seal should not be installed until the nosing concrete has achieved its full design strength (typically 28 days). This is critical: installing the seal before the concrete is fully cured and then trafficking the bridge can cause the nosing to crack and the edge beam to shift, making it impossible to maintain the correct seal geometry.
The seal is installed by stretching it along its length and inserting it into the edge beam slots simultaneously from one end of the joint to the other. A purpose-made insertion tool (typically a roller or a shaped plastic guide) is used to ensure the seal is correctly seated in both slots without twisting or folding. The seal must not be over-stretched during installation, as this will reduce its effective width and may cause it to pull out of the slots under traffic loading.
The consequences of poor installation or deferred maintenance: a failed strip seal expansion joint showing a torn and displaced seal, cracked and spalled concrete nosing, corroded edge beams, and extensive water damage to the bridge structure below. Timely seal replacement prevents this level of deterioration.
Before the joint is opened to traffic, a watertightness test should be carried out. This involves ponding water on the joint surface and checking for any leakage below the deck. Any leakage must be investigated and rectified before trafficking.
The completed joint should be inspected at 3 months, 12 months, and then annually thereafter. Key inspection items include: seal condition (cracking, tearing, displacement), edge beam condition (corrosion, impact damage), nosing concrete condition (cracking, spalling), and drainage of any water that penetrates the joint.
Bridgent supplies strip seal expansion joints with movement ranges from 0 to 80 mm, with edge beams in galvanised steel, stainless steel, or weathering steel. Replacement seals are available for all standard and non-standard edge beam profiles. Our technical team provides installation guidance and quality control support for bridge joint projects worldwide.
