On high-traffic highway bridges, the expansion joint is one of the most mechanically demanding components in the entire structure. It must accommodate large structural movements — sometimes exceeding 1,000 mm — while simultaneously supporting the full weight of heavy goods vehicles passing over it at speed, maintaining a watertight seal against water and debris ingress, and doing so reliably for a design life of 25–50 years with minimal maintenance. Modular expansion joints (MEJ) are the engineering solution of choice for these demanding applications, and their correct selection is critical to the long-term performance of the bridge.
A modular expansion joint consists of a series of centre beams (lamellas) — typically made from high-strength structural steel — supported on a system of support bars that span between the two sides of the joint gap. Between each pair of adjacent centre beams, a profiled elastomeric sealing element provides the watertight seal. The number of centre beams determines the total movement capacity of the joint: each module (the space between two adjacent centre beams) typically accommodates 80 mm of movement, so a joint with 10 modules can accommodate 800 mm of total movement.
The support bar system is designed to ensure that the spacing between adjacent centre beams remains equal at all times, regardless of the total joint opening. This equal-spacing mechanism — achieved through a system of springs, sliders, and control arms — is essential for maintaining the integrity of the sealing elements throughout the movement cycle.

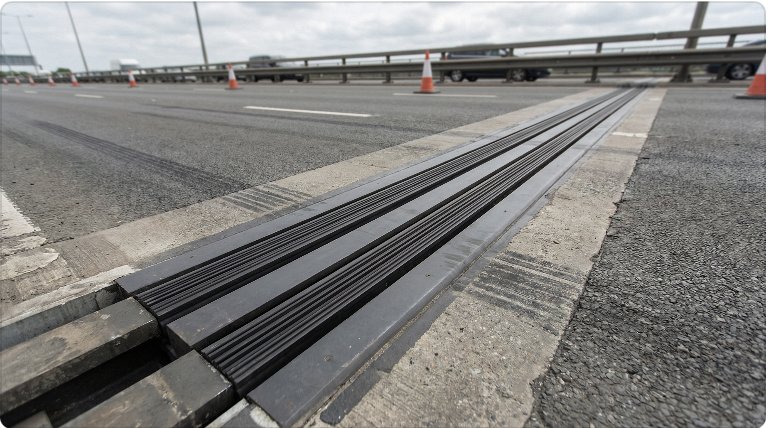

A 5-module modular expansion joint installed in a major highway bridge deck, accommodating up to 400 mm of total movement. The steel centre beams (lamellas) and elastomeric sealing elements are clearly visible. This joint type is the standard choice for long-span highway bridges and motorway viaducts.
1. Total Movement Range — The most fundamental parameter is the total movement range the joint must accommodate. This is calculated from the sum of thermal movement (based on the bridge length, material, and local temperature range), creep and shrinkage (for concrete bridges), and any pre-set applied during installation. For a concrete bridge of 500 m total length in a temperate climate, total movements of ±200 mm are typical; for a 1,000 m bridge in a continental climate, movements of ±400 mm or more may be required.
2. Traffic Loading — Modular expansion joints on highway bridges must be designed to carry the full design traffic loading specified in the applicable bridge design standard (AASHTO HL-93, Eurocode EN 1991-2, etc.). The fatigue loading from repeated heavy vehicle axle loads is particularly critical for the centre beam and support bar connections, which must be designed and tested to demonstrate adequate fatigue life.
3. Waterproofing Performance — The elastomeric sealing elements must maintain a watertight seal throughout the full range of joint movement and under the dynamic loads imposed by traffic. Water ingress through the joint can cause severe corrosion of the bridge structure below and contamination of watercourses beneath the bridge. The sealing elements should be replaceable without requiring removal of the entire joint assembly.
4. Noise and Ride Quality — Modular expansion joints can generate significant noise as vehicle tyres pass over the centre beams. This is a particular concern for bridges in urban areas or near residential properties. Noise-reducing designs — incorporating rubber nosings on the centre beams, optimised beam spacing, and vibration-damping support systems — are available and should be specified where noise is a constraint.
5. Skew and Curvature — For bridges with a skewed alignment or horizontal curvature, the modular joint must be designed to accommodate the resulting non-uniform movement distribution. This typically requires a custom-designed support bar arrangement and careful analysis of the joint kinematics.

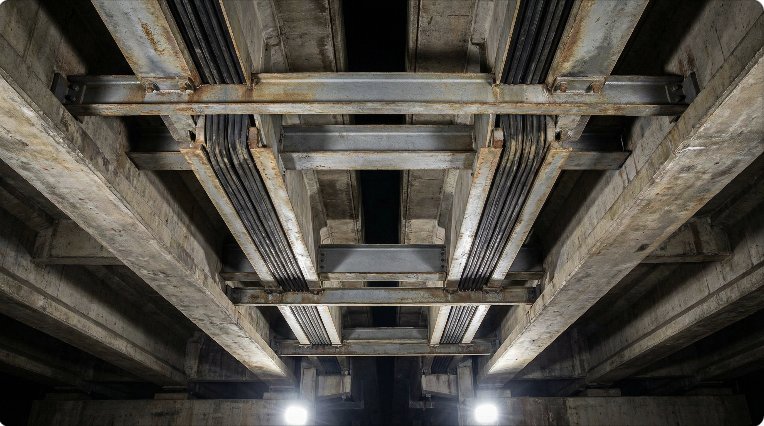

The underside of a modular expansion joint showing the support bar system that maintains equal spacing between the centre beams throughout the full movement cycle. The elastomeric seals are visible between the centre beams, providing the watertight barrier.
Modular expansion joints for highway bridges should be specified in accordance with relevant national or international standards. In Europe, EN 1337-1 provides general principles, while many national highway authorities have their own approval schemes. In the USA, AASHTO provides guidance, and many state DOTs have their own approved product lists.
Factory acceptance testing of modular joints should include static load testing, fatigue testing, and watertightness testing. The fatigue test is particularly important: the joint must demonstrate adequate performance under millions of load cycles representing the design traffic loading over the joint's intended service life.
Bridgent's modular expansion joints are tested and certified to international standards and are available with movements from 80 mm (single module) to 1,200 mm (15 modules). Our engineering team provides full technical support for joint selection, movement calculations, and installation supervision for highway bridge projects worldwide.
