For bridge owners and asset managers faced with specifying or replacing expansion joints on medium to long-span bridges, the choice between finger expansion joints and modular expansion joints is rarely straightforward. Both types can accommodate large movements — typically 80 mm to 1,200 mm — and both have extensive track records in demanding highway and railway bridge applications. However, they differ significantly in their initial cost, maintenance requirements, waterproofing performance, and whole-life cost profile. This analysis provides a structured framework for making this important decision.
A finger expansion joint consists of two sets of interlocking steel "fingers" — cantilevered steel plates with tapered ends — one set attached to each side of the joint gap. As the bridge expands and contracts, the fingers slide over each other, maintaining a continuous running surface for traffic while accommodating the structural movement. The fingers are typically fabricated from high-strength structural steel and are hot-dip galvanised or painted for corrosion protection.
The primary advantage of finger joints is their durability and simplicity. There are no elastomeric components to degrade, no seals to replace, and no complex mechanical systems to maintain. A well-designed and correctly installed finger joint can provide 40–50 years of service with minimal maintenance. They are particularly well-suited to bridges in harsh environments (extreme temperatures, heavy de-icing salt use) where elastomeric components would have a shortened service life.
The principal limitation of finger joints is their lack of waterproofing. Water, de-icing salt, and debris pass freely through the gaps between the fingers onto the bridge structure below. This requires the provision of a drainage trough beneath the joint to collect and discharge the contaminated water, adding to the initial cost and requiring periodic cleaning to prevent blockage.

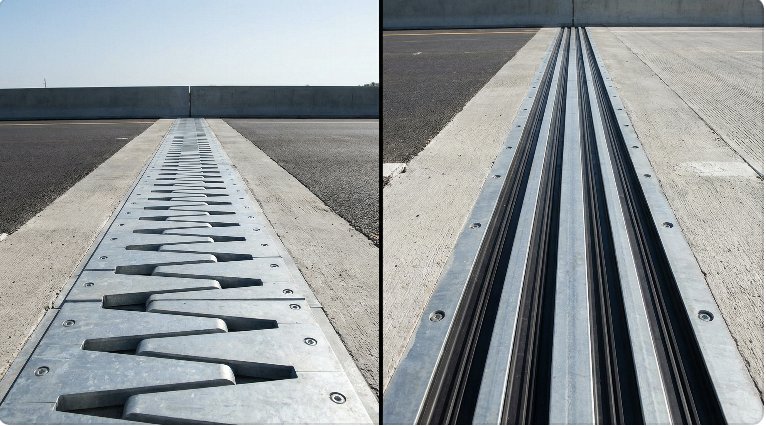

Left: A finger expansion joint with interlocking steel finger plates — highly durable but not watertight. Right: A modular expansion joint with steel centre beams and elastomeric sealing elements — watertight performance across large movement ranges. The choice between these two types depends on the specific bridge environment and whole-life cost priorities.
A modular expansion joint uses a system of steel centre beams and elastomeric sealing elements to provide both movement accommodation and watertight sealing. The elastomeric seals are the critical maintenance item: they must be inspected regularly and replaced when they show signs of deterioration, typically every 10–20 years depending on traffic intensity and environmental conditions.
The primary advantage of modular joints is their watertight performance. When correctly maintained, they prevent water and contaminants from reaching the bridge structure below, significantly reducing the risk of corrosion and concrete deterioration. This is particularly important for bridges over sensitive watercourses or in urban environments where contaminated runoff is a concern.
The following analysis is based on a typical 200 m span highway bridge with a total movement range of 400 mm (5-module modular joint or equivalent finger joint), in a temperate climate with moderate de-icing salt use.
| Cost Item | Finger Joint | Modular Joint |
|---|---|---|
| Initial supply and installation | Medium | High (+30–50%) |
| Drainage trough (finger joint only) | Required | Not required |
| Seal replacement (modular only) | Not applicable | Every 15 years |
| Routine cleaning and inspection | Low | Low |
| Structural repairs below joint | Higher (water ingress) | Lower (watertight) |
| Replacement at end of life (50 yr) | Low (long service life) | Medium |

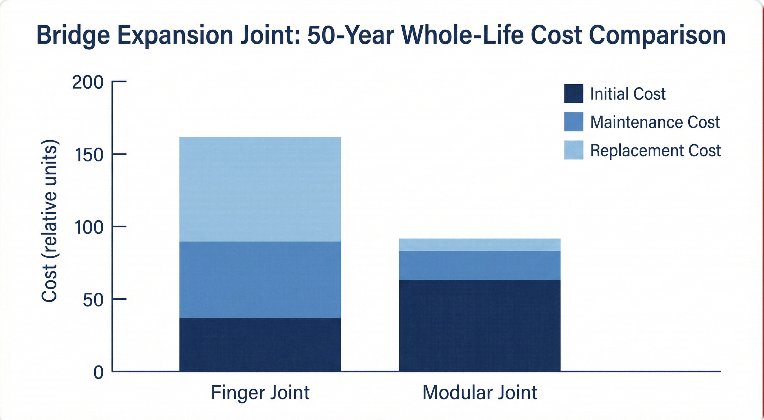

| Estimated 50-year whole-life cost | Medium-High | Medium |
Choose finger joints when: the bridge is in a very harsh environment (extreme temperatures, heavy de-icing) where elastomeric seal life would be short; the bridge is over a non-sensitive watercourse and drainage can be easily managed; the bridge owner has a preference for minimal mechanical complexity; or budget constraints favour lower initial cost.
Choose modular joints when: watertight performance is a priority (sensitive environment, urban location); the bridge is in a moderate climate where seal life will be maximised; the whole-life cost analysis favours the lower structural maintenance costs; or the bridge owner has a robust maintenance programme for seal replacement.
Bridgent supplies both finger expansion joints (movements 80–1,200 mm) and modular expansion joints (movements 80–1,200 mm). Our technical team can provide whole-life cost analysis and joint selection recommendations for specific bridge projects, taking into account local climate, traffic loading, environmental sensitivity, and maintenance capacity.
Our engineers can provide whole-life cost analysis and technical recommendations for expansion joint selection on your bridge project.
