What does expansion joints on bridges do?

In bridge construction,expansion jointsIt is an important structural element that adjusts the expansion and contraction of the bridge deck under temperature changes, concrete shrinkage and load, and prevents the bridge from being subjected to excessive tensile force. This article will detail the role and importance of bridge expansion joints.

1. Definition and types of expansion joints

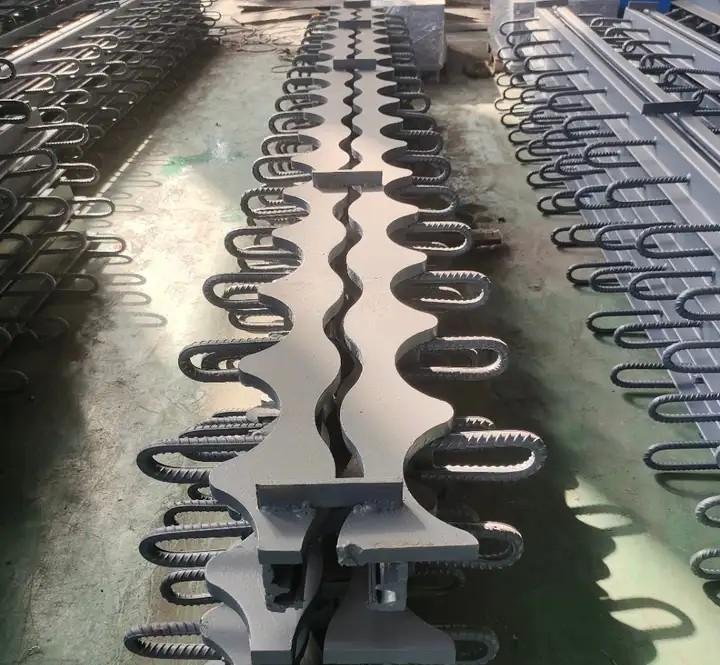

An expansion joint is a device used to adjust the displacement of the bridge deck due to temperature changes, concrete shrinkage and loads. Depending on the type of bridge and design requirements, expansion joints can be in different structural forms. Common types of expansion joints include:Comb-shaped expansion seams、Rubber expansion jointsWithModular expansion joints。

2. The role and importance of expansion joints

1. Adapt to temperature changes: The bridge surface is affected by solar radiation and the surrounding ambient temperature, and the bridge deck will produce thermal expansion and contraction. The expansion joint can adapt to this temperature change, adjust the expansion and contraction of the bridge deck, and prevent the bridge from being subjected to excessive tension.

2. Absorption of concrete shrinkage: During the solidification process of concrete, a certain degree of shrinkage occurs. Expansion joints absorb this shrinkage, preventing cracks or deformation of the bridge.

3. Bear loads: Bridges need to withstand vehicles, crowds, and other external loads. Expansion joints can disperse these loads to other parts of the bridge, avoiding damage to the bridge due to local excessive stress.

3. Successful cases of expansion joints

Pittsburgh, USAGrand archIt is one of the most famous bridges in the world, and its design makes clever use of expansion joints. The large arch has a height and span of 528 feet and is adoptedcable-stayedSupporting the bridge deck. To accommodate temperature changes and concrete shrinkage, the designers set up expansion joints between the bridge deck and the supporting structure. These expansion joints not only maintain the overall stability of the bridge, but also add a unique charm to it.

4. Advantages and disadvantages of expansion joints

1. Advantages: Expansion joints can adapt to temperature changes and concrete shrinkage, preventing the bridge from being subjected to excessive tension and improving the stability and service life of the bridge.

2. Disadvantages: Expansion joints can become a gathering place for garbage or plants, affecting the aesthetics and drainage of the bridge. In addition, some poor expansion joint designs can pose safety hazards to vehicles and pedestrians.

5. Maintenance and maintenance of expansion joints

To ensure the proper functioning of expansion joints, regular inspections and maintenance are required. This includes cleaning up debris inside expansion joints, checking their structural condition, and repairing or replacing them if needed. In addition, special attention is paid to the waterproof properties of expansion joints to prevent moisture damage to the bridge structure.

6. Future research and prospects

With the development of science and technology and the advancement of engineering technology, the design and manufacturing technology of expansion joints are also constantly improving. In the future, researchers can further optimize the structural design of expansion joints to improve their performance and durability. In addition, the research and development and application of new materials also provide more possibilities for the improvement of expansion joints.

In conclusion, expansion joints on bridges play an important role in maintaining the overall stability and safety of the bridge. Understanding the types, functions, advantages and disadvantages of expansion joints, and performing regular maintenance on them is of great significance to ensure the normal operation of bridges and extend their service life. Future research will be dedicated to further optimizing the design of expansion joints and contributing to the development of bridge engineering.
